5810148009 - Cinch Connectivity Solutions

Description: ME Header Black 48 Circuit

Download 5810148009 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

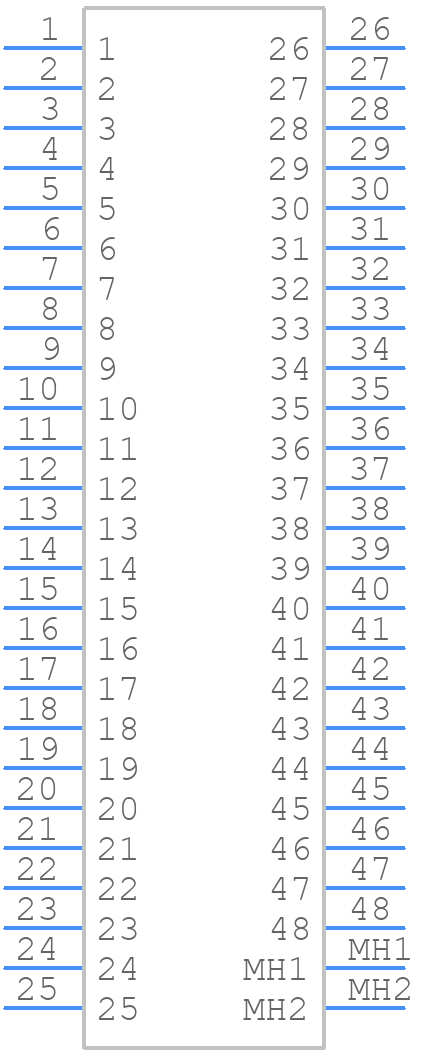

5810148009 - Cinch Connectivity Solutions - PCB symbol
click to zoom
PCB Footprints

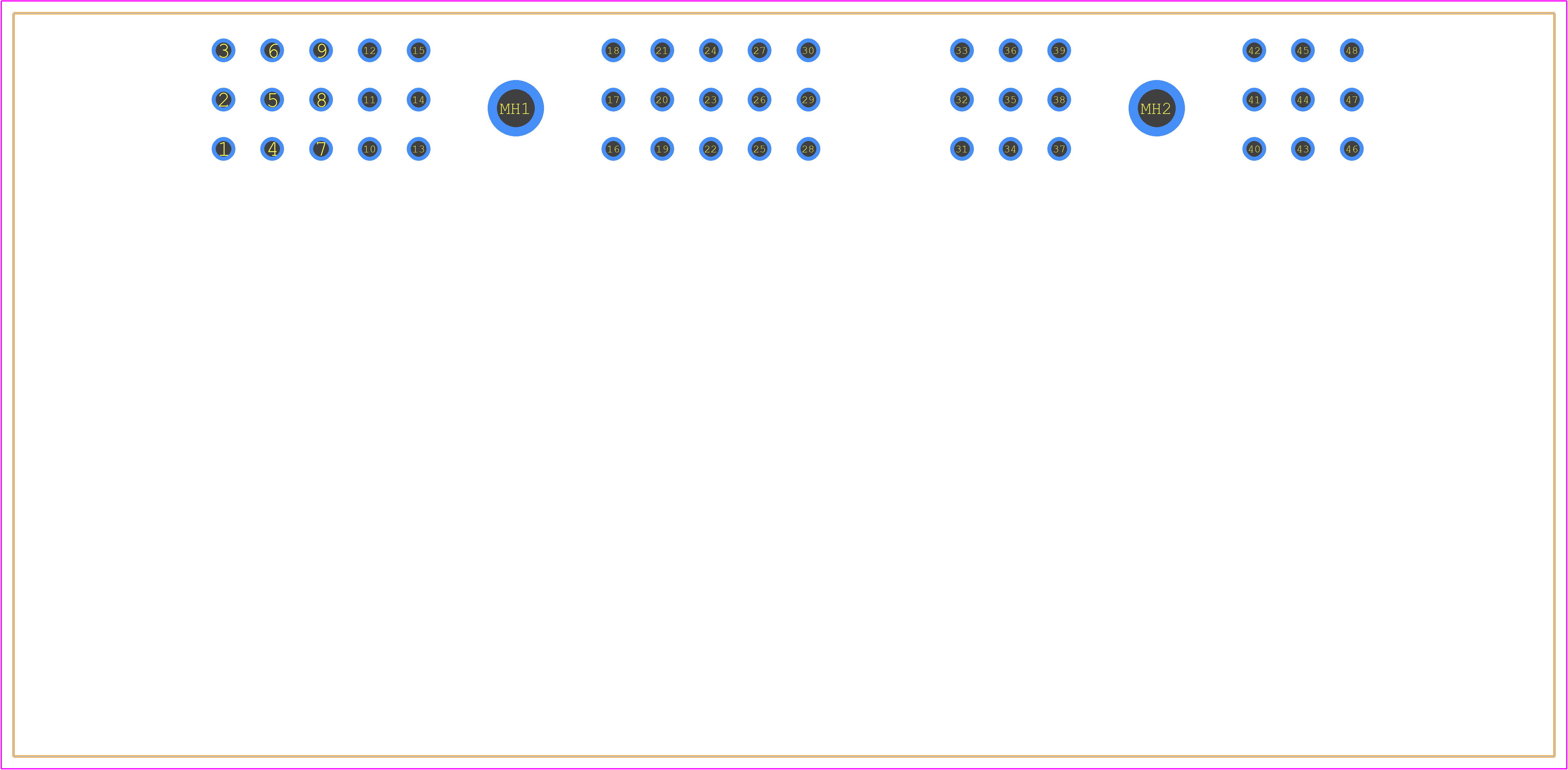

5810148009 - Cinch Connectivity Solutions PCB footprint - Other - Other - 5810148009-4
click to zoom
3D Models
5810148009 - Cinch Connectivity Solutions - 3D model - Other - 5810148009-4
click to zoom

5810148009 Details

  • Manufacturer Part Number:

    5810148009

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Cinch Connectivity Solutions

  • YTEOL:

    6.6

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    TIN OVER NICKEL

  • Contact Finish Termination:

    TIN OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYMER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    3.96 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    48

5810148009 Frequently Asked Questions (FAQs)

  • The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the screw threads.
  • Yes, the 5810148009 connector is designed to withstand high-vibration environments, but it's recommended to consult with Cinch Connectivity Solutions for specific vibration testing and validation.
  • The operating temperature range for the 5810148009 connector is -55°C to 125°C (-67°F to 257°F).
  • The 5810148009 connector is designed to be resistant to harsh environments, but it's recommended to consult with Cinch Connectivity Solutions for specific environmental testing and validation.
  • The mating cycle life of the 5810148009 connector is 500 cycles minimum, but this can vary depending on the application and usage.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5810148009 Overview

Use the download button to access the 5810148009 schematic symbol, PCB footprint, and 3D model.
