5810148010 footprint, schematic symbol and 3D model by Cinch Connectivity Solutions

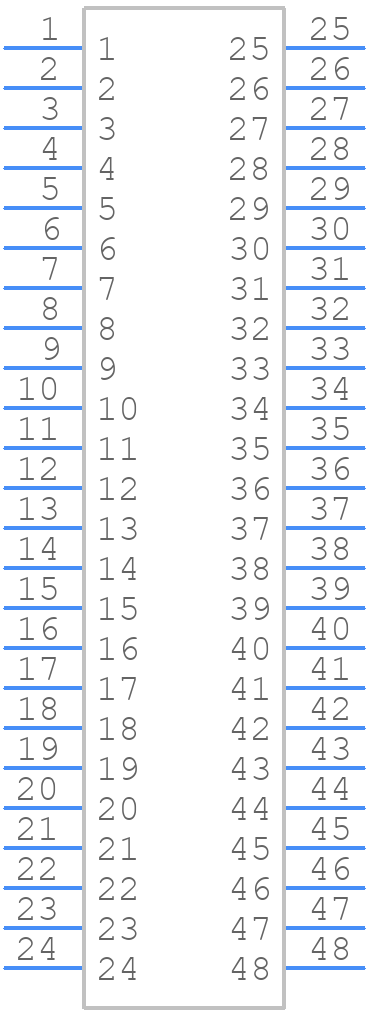

Symbol

click to zoom

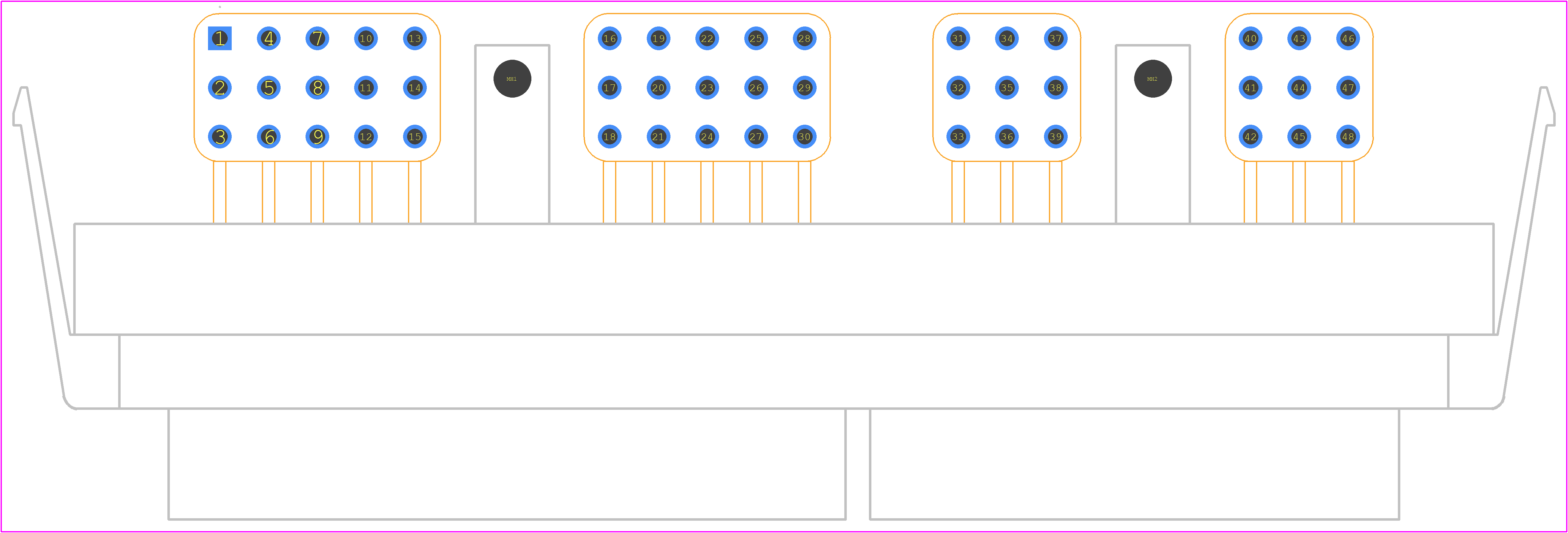

PCB Footprints

5810148010 - Cinch Connectivity Solutions PCB footprint - Other - Other - 5810148010-7

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 5810148010
Part Number 5810148010
Manufacturer Cinch Connectivity Solutions
Pin Count 48
Part Category Connector
Package Category Other
Footprint Name Other - 5810148010-7
Released Date Jun 5, 2022
Last Modified Date Jun 23, 2025 5:10 AM UTC
Pinout / Pin List Click Here (Member Only)

5810148010 Details

Manufacturer Part Number:
5810148010
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Cinch Connectivity Solutions
YTEOL:
6.6
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
TIN OVER NICKEL
Contact Finish Termination:
TIN OVER NICKEL
Contact Gender:
MALE
Contact Material:
BRASS
DIN Conformance:
NO
Filter Feature:
YES
IEC Conformance:
NO
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
3
Option:
GENERAL PURPOSE
Terminal Pitch:
3.96 mm
Termination Type:
SOLDER
Total Number of Contacts:
48

5810148010 Frequently Asked Questions (FAQs)

The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the screw threads to ensure proper mating and to prevent damage to the connector.
Yes, the 5810148010 connector is designed to withstand high-vibration environments. However, it's recommended to follow the manufacturer's guidelines for mounting and securing the connector to ensure reliable performance.
The operating temperature range for the 5810148010 connector is -55°C to 125°C (-67°F to 257°F). However, it's recommended to consult the datasheet for specific temperature ratings for the connector's materials and components.
The 5810148010 connector has a sealed design, but it's not fully waterproof. It's recommended to use additional sealing or protective measures if the connector will be exposed to high humidity or wet conditions.
The mating cycle life of the 5810148010 connector is rated for a minimum of 500 mating cycles. However, this may vary depending on the application, usage, and environmental conditions.

Trust Checks

Community Provided

System Verified

Community Approved

5810148010 Overview

Use the download button to access the 5810148010 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 58101, or try a keyword search, such as Headers and Edge Type Connectors
