The recommended torque value for mating and unmating the 5810618009 connector is typically between 0.5 to 1.5 Nm (7 to 13 in-lbs), but it's recommended to consult the specific application notes or contact Cinch Connectivity Solutions for precise guidance.
While the 5810618009 connector is designed to be rugged, its suitability for high-vibration or harsh environments depends on the specific application and requirements. Cinch Connectivity Solutions recommends consulting their application notes or contacting their technical support for guidance on environmental considerations.
The 5810618009 connector is designed for signal integrity and can support high-speed data transmission applications up to 10 Gbps. However, the specific performance characteristics and limitations should be evaluated based on the application requirements and signal integrity analysis.
Yes, Cinch Connectivity Solutions provides recommended PCB layout guidelines and design considerations for the 5810618009 connector, including pad layout, trace routing, and clearance requirements. It's recommended to consult their application notes or contact their technical support for guidance.
The typical lead time and minimum order quantity for the 5810618009 connector may vary depending on the region, distributor, and availability. It's recommended to contact Cinch Connectivity Solutions or their authorized distributors for the most up-to-date information on lead times and MOQs.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
5810618009 Overview

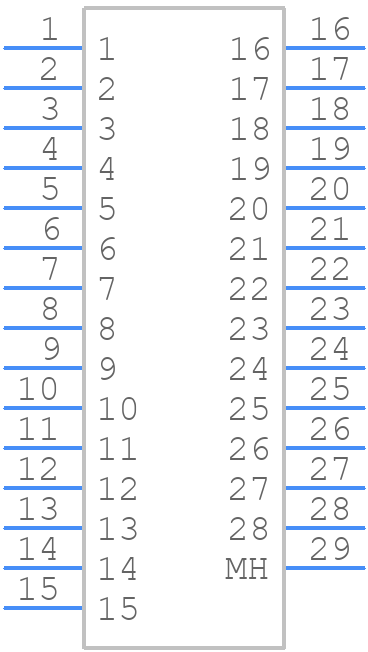

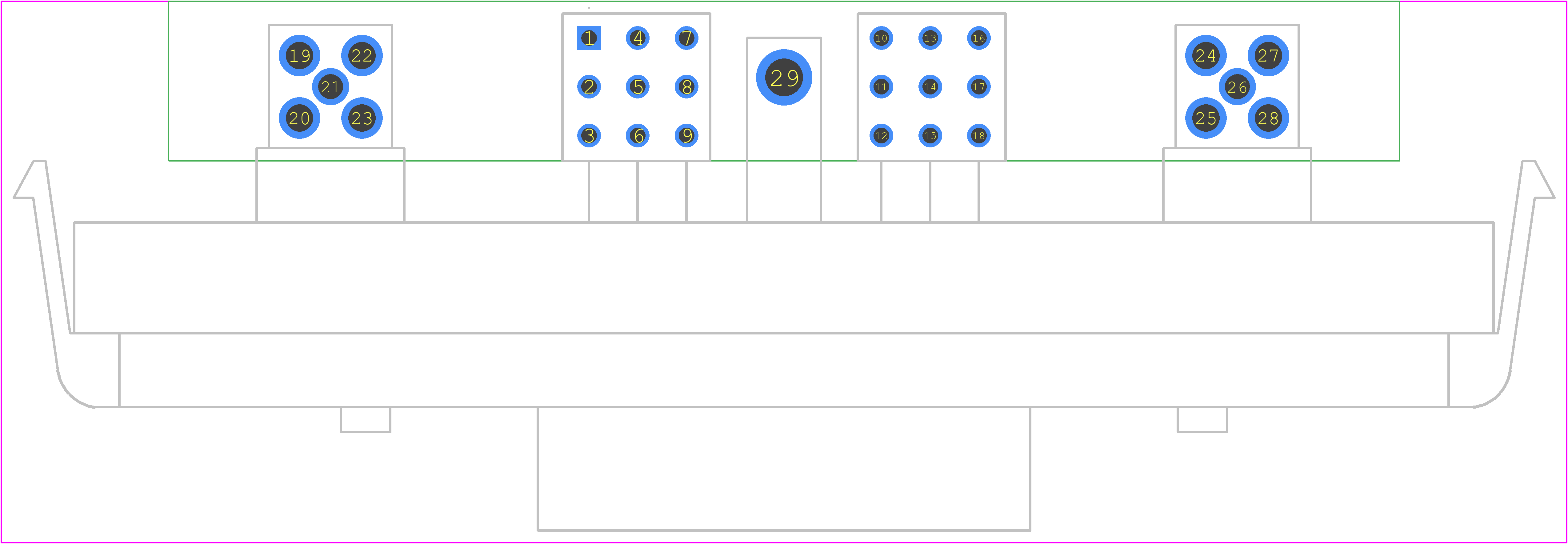

Use the download button to access the 5810618009 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 58106,
or try a keyword search, such as Combination Line Connectors
