5822030-4 - TE Connectivity

Description: Body Features: Retention Post Location Center | Latch Plating Material Nickel | Connector Profile Standard | Latch Material Brass | Configuration Features: Number of Positions 80 | Module Orientation Vertical | Number of Keys 1 | Number of Rows 1 | Contact Features: Contact Mating Area Plating Material Thickness 200 MICIN | Contact Current Rating (Max) 1 AMP | Contact Mating Area Plating Material Tin | PCB Contact Termination Area Plating Material Tin | Memory Socket Type Memory Card | Contact Base Material

Download 5822030-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5822030-4 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

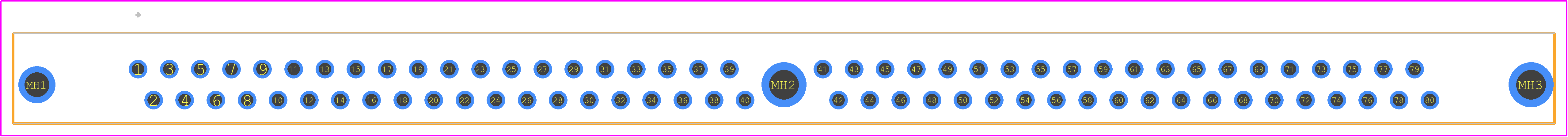

5822030-4 - TE Connectivity PCB footprint - Other - Other - 5822030-4-2
click to zoom
3D Models
5822030-4 - TE Connectivity - 3D model - Other - 5822030-4-2
click to zoom

5822030-4 Details

  • Manufacturer Part Number:

    5822030-4

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    9 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Additional Feature:

    POLARIZED, LATCHED

  • Connector Type:

    CARD EDGE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1A

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    200u inch

  • Polarization Key:

    SHRD LEFT

  • Rated Current (Signal):

    1 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.12 inch

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    80

  • UL Flammability Code:

    94V-0

5822030-4 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 5822030-4 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • The 5822030-4 connector has a rating of IP20, which means it provides some protection against solid objects and limited protection against water. While it can be used in outdoor applications, it's not recommended for harsh environmental conditions. For such applications, consider using connectors with higher IP ratings or additional environmental protection measures.
  • While the datasheet recommends using AWG 20-24 wires, it's possible to use other wire sizes with some limitations. However, using smaller or larger wires may affect the connector's performance, reliability, and durability. Consult with TE Connectivity or a qualified engineer to determine the feasibility of using alternative wire sizes.
  • Yes, as with any electrical connector, it's essential to follow proper safety precautions when using the 5822030-4 connector. Ensure that the connector is used within its rated voltage and current specifications, and follow proper installation and termination procedures to prevent electrical shock or fire hazards.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5822030-4 Overview

Use the download button to access the 5822030-4 schematic symbol, PCB footprint, and 3D model.
