Part Image

5822134-3 - TE Connectivity

Description: Body Features: Latch Material Stainless Steel | Connector Profile Low | Retention Post Location Center | Latch Plating Material Nickel | Configuration Features: Number of Positions 72 | Module Orientation 22° | Number of Rows 1 | Number of Keys 1 | Contact Features: Contact Mating Area Plating Material Thickness 200 MICIN | Contact Base Material Phosphor Bronze | Contact Underplating Material Nickel | Contact Current Rating (Max) 1 AMP | Memory Socket Type Memory Card | PCB Contact Termination Area Plating

Download 5822134-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

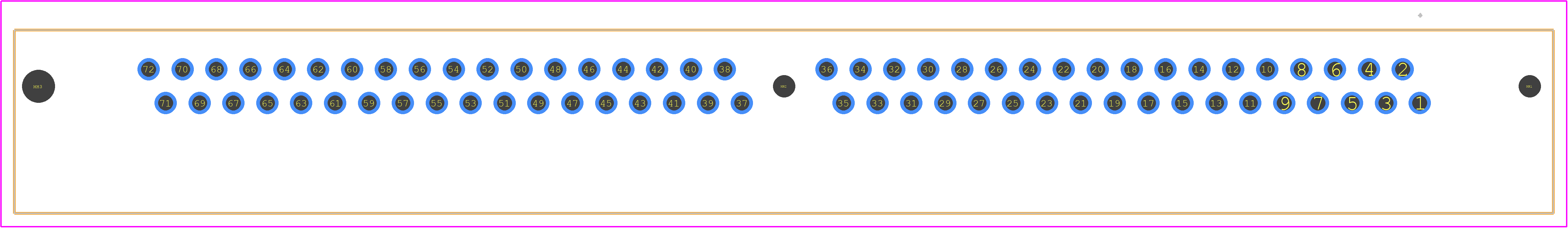

5822134-3 - TE Connectivity PCB footprint - Other - Other - 5822134-3-1
click to zoom
3D Models
5822134-3 - TE Connectivity  - 3D model - Other - 5822134-3-1
click to zoom

5822134-3 Details

  • Manufacturer Part Number:

    5822134-3

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    9 Weeks, 4 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.5

  • Additional Feature:

    ROHS AND ELV COMPLIANT

  • Board Mounting Option:

    PEG

  • Body Breadth:

    0.54 inch

  • Body Depth:

    0.5 inch

  • Body Length:

    4.54 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    CARD EDGE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    BELLOWED TYPE

  • DIN Conformance:

    NO

  • Durability:

    25 Cycles

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    10000000000 Ω

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1A

  • Mating Contact Pitch:

    0.05 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    22 DEGREE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    0.1 mm

  • Panel Mount:

    NO

  • Plating Thickness:

    200u inch

  • Polarization Key:

    SHRD LEFT

  • Rated Current (Signal):

    1 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.115 inch

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    72

  • UL Flammability Code:

    94V-0

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5822134-3 Overview

Use the download button to access the 5822134-3 schematic symbol, PCB footprint, and 3D model.
