59170-1-S-00-C - LITTELFUSE

Description: Molded Body Reed Switch SPST-NO 10 ~ 15AT Operate Range 10W 350mA (AC), 500mA (DC) 140 V Surface Mount

Download 59170-1-S-00-C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
59170-1-S-00-C - LITTELFUSE - PCB symbol
click to zoom
PCB Footprints

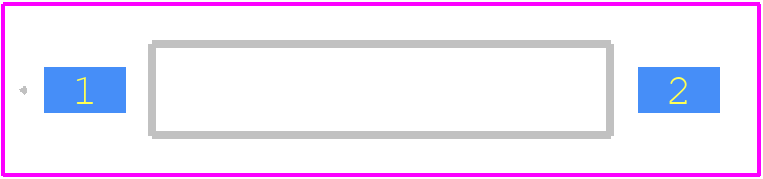

59170-1-S-00-C - LITTELFUSE PCB footprint - Other - Other - 59170-1-S-00-C-2
click to zoom
3D Models
59170-1-S-00-C - LITTELFUSE - 3D model - Other - 59170-1-S-00-C-2
click to zoom

59170-1-S-00-C Details

  • Manufacturer Part Number:

    59170-1-S-00-C

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    7

  • Switch Type:

    DRY REED SWITCH

  • Terminal Finish:

    Matte Tin (Sn)

59170-1-S-00-C Frequently Asked Questions (FAQs)

  • The recommended storage temperature for the 59170-1-S-00-C is -40°C to 125°C.
  • Yes, the 59170-1-S-00-C is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C.
  • The maximum surge current rating for the 59170-1-S-00-C is 100A for 1ms, and 50A for 10ms.
  • Yes, the 59170-1-S-00-C is AEC-Q101 qualified, making it suitable for use in automotive applications.
  • The operating frequency range for the 59170-1-S-00-C is DC to 1GHz.
