Part Image

5917631-4 - TE Connectivity

Description: 100 Position Connector Plug, Center Strip Contacts Through Hole Gold Board to Board & Mezzanine Connectors PLUG ASY V 100P 1.27FHBB

Download 5917631-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5917631-4 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

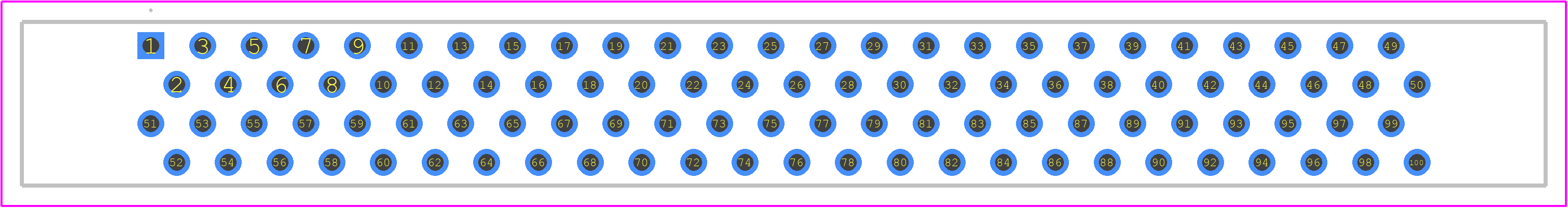

5917631-4 - TE Connectivity PCB footprint - Other - Other - 5917631-4-1
click to zoom
3D Models
5917631-4 - TE Connectivity - 3D model - Other - 5917631-4-1
click to zoom

5917631-4 Details

  • Manufacturer Part Number:

    5917631-4

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    19 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Body Breadth:

    0.315 inch

  • Body Depth:

    0.276 inch

  • Body Length:

    2.947 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    TELCOM, MODULAR

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYETHYLENE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of PCB Rows:

    4

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    1.905 mm

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    1 A

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    100

  • UL Flammability Code:

    94V-0

5917631-4 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the terminals.
  • Yes, the 5917631-4 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 standard for vibration resistance, making it suitable for use in applications such as rail, aerospace, and industrial equipment.
  • The operating temperature range for the 5917631-4 connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • Yes, the 5917631-4 connector is designed to operate in harsh environments. It has a IP67 rating, which means it can withstand exposure to dust and water immersion up to 1 meter for 30 minutes. Additionally, it has a salt spray resistance of 720 hours, making it suitable for use in coastal or high-humidity environments.
  • Yes, the 5917631-4 connector is part of TE Connectivity's modular connector system. It can be used with other TE Connectivity products, such as backshells, cable assemblies, and contacts, to create a complete connector solution.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5917631-4 Overview

Use the download button to access the 5917631-4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 59176, or try a keyword search, such as Telecom and Datacom Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
