592-3030-302F - Dialight

Description: LED Circuit Board Indicators Dual R/G 628/570nm 6.5/8mcd

Download 592-3030-302F Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 592-3030-302F model

Email notifications will be applied after download.

Send part feedback

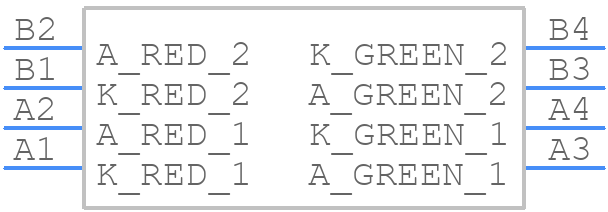

Symbol

592-3030-302F - Dialight - PCB symbol

PCB Footprints

592-3030-302F - Dialight PCB footprint - Other - Other - 592-3030-302F-3

3D Models

592-3030-302F - Dialight - 3D model - Other - 592-3030-302F-3

Datasheet Download Datasheet
Stock & Prices Price & Stock for 592-3030-302F
Part Number 592-3030-302F
Manufacturer Dialight
Pin Count 8
Part Category LED (Multiple)
Package Category Other
Footprint Name Other - 592-3030-302F-3
Released Date Jun 22, 2021
Last Modified Date Jul 22, 2025 7:49 AM UTC
Pinout / Pin List Click Here (Member Only)

592-3030-302F Details

Manufacturer Part Number:
592-3030-302F
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Country Of Origin:
Malaysia
HTS Code:
8541.40.20.00
Manufacturer:
Dialight
YTEOL:
0
Color:
RED/GREEN
Configuration:
SEPARATE, 4 ELEMENTS
Forward Current-Max:
0.015 A
Forward Voltage-Max:
2.2 V
Luminous Intensity-Nom:
11.0/5.0 mcd
Mounting Feature:
SURFACE MOUNT
Number of Functions:
2
Number of LEDs in Array:
4
Number of Terminals:
8
Operating Temperature-Max:
100 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
DUAL COLOR LED ARRAY
Overall Height:
11.56 mm
Packing Method:
STRIP
Peak Wavelength:
643/572 nm
Reverse Voltage-Max:
12 V
Shape:
ROUND
Size:
2.29 mm
Surface Mount:
YES
T-code:
T-1
Terminal Pitch:
2.53 mm

592-3030-302F Frequently Asked Questions (FAQs)

The recommended operating temperature range for the 592-3030-302F is -40°C to 85°C.
Yes, the 592-3030-302F is suitable for outdoor use, but it's recommended to use a protective cover or enclosure to ensure IP67 rating.
The typical lifespan of the 592-3030-302F is 50,000 hours or more, depending on operating conditions and usage.
Yes, the 592-3030-302F is designed to withstand high-vibration environments, but it's recommended to follow proper mounting and installation procedures.
Yes, the 592-3030-302F is compatible with dimming systems, but it's recommended to check the compatibility with the specific dimming system being used.

Trust Checks

Expert Contribution

System Verified

Community Approved

592-3030-302F Overview

Use the download button to access the 592-3030-302F schematic symbol, PCB footprint, and 3D model.
