592-3232-313F - Dialight

Description: LED Circuit Board Indicator LED Circuit Board Indicator 2 High Red, Yellow (x 2) 2V 30mA Round with Domed Top 3.00mm Dia Surface Mount, Right Angle

Download 592-3232-313F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

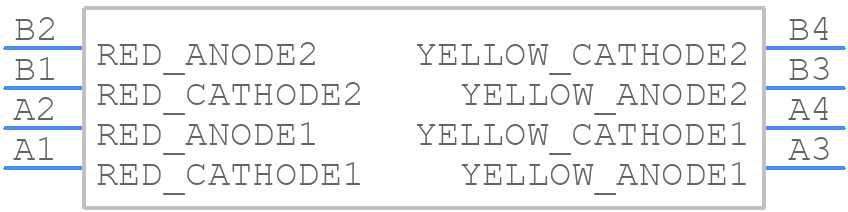

592-3232-313F - Dialight - PCB symbol
click to zoom
PCB Footprints
592-3232-313F - Dialight PCB footprint - Other - Other - 592-3232-313F-1
click to zoom
3D Models
592-3232-313F - Dialight - 3D model - Other - 592-3232-313F-1
click to zoom

592-3232-313F Details

  • Manufacturer Part Number:

    592-3232-313F

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Dialight

  • YTEOL:

    6

  • Color:

    RED/YELLOW

  • Forward Current-Max:

    0.03 A

  • Luminous Intensity-Nom:

    21.0/34.0 mcd

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    DUAL COLOR LED ARRAY

  • Overall Height:

    11.56 mm

  • Packing Method:

    TR, 13 INCH

  • Peak Wavelength:

    645/591 nm

  • Shape:

    ROUND

  • Size:

    2.29 mm

  • Surface Mount:

    YES

  • Terminal Pitch:

    3 mm

592-3232-313F Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 592-3232-313F is -40°C to 85°C, although it can withstand storage temperatures from -40°C to 100°C.
  • Yes, the 592-3232-313F is suitable for outdoor use, as it has a IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes.
  • The typical lifespan of the 592-3232-313F is 50,000 hours, although this can vary depending on operating conditions and environmental factors.
  • Yes, the 592-3232-313F is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G peak acceleration.
  • Yes, the 592-3232-313F is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in the European Union and other regions with similar regulations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

592-3232-313F Overview

Use the download button to access the 592-3232-313F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 592-3, or try a keyword search, such as Visible LEDs
