593-313131-013F - Dialight

Description: LED Circuit Board Indicator LED Circuit Board Indicator 3 High Green, Yellow (x 3) Diffused 2V 30mA Round with Domed Top 3mm, T-1 Surface Mount, Right Angle

Download 593-313131-013F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

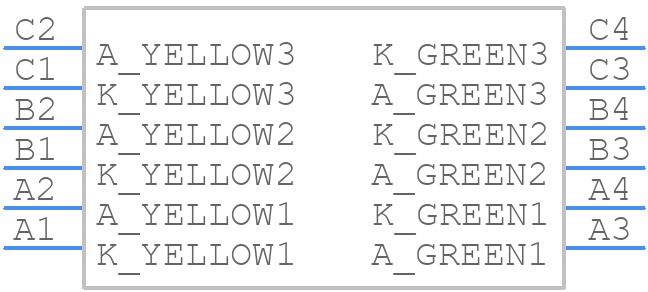

593-313131-013F - Dialight - PCB symbol
click to zoom
PCB Footprints
593-313131-013F - Dialight PCB footprint - Other - Other - 22.61 x 4.32 x 16.08mm
click to zoom

593-313131-013F Details

  • Manufacturer Part Number:

    593-313131-013F

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Dialight

  • YTEOL:

    0

  • Additional Feature:

    UL RECOGNIZED

  • Color:

    YELLOW/GREEN

  • Color@Wavelength:

    Green/Yellow

  • Configuration:

    SEPARATE, 6 ELEMENTS

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2 V

  • Luminous Intensity-Min:

    0.006 cd

  • Luminous Intensity-Nom:

    6.0/10.0 mcd

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    3

  • Number of LEDs in Array:

    3

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    DUAL COLOR LED ARRAY

  • Overall Height:

    16.08 mm

  • Packing Method:

    TR, 13 INCH

  • Shape:

    ROUND

  • Size:

    3 mm

  • Surface Mount:

    YES

  • T-code:

    T-1

  • Terminal Pitch:

    2.95 mm

  • Viewing Angle:

    40 deg

593-313131-013F Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 593-313131-013F is -40°C to 85°C, although it can withstand storage temperatures from -40°C to 100°C.
  • Yes, the 593-313131-013F is designed for outdoor use and has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes.
  • The typical lifespan of the 593-313131-013F is 50,000 hours, although this can vary depending on operating conditions and environmental factors.
  • Yes, the 593-313131-013F is designed to withstand high-vibration environments and has been tested to meet the requirements of IEC 60068-2-6.
  • The 593-313131-013F has a standard T-1 3/4 package size and a lead spacing of 2.54mm, making it compatible with most PCB designs. However, it's recommended to verify the mechanical and electrical compatibility before integration.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

593-313131-013F Overview

Use the download button to access the 593-313131-013F schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 593-3, or try a keyword search, such as Visible LEDs
