5932-023-2431-3NF - Dialight

Description: LED Circuit Board Indicator LED Circuit Board Indicator 3 High Green (x 1), Red (x 1), Yellow (x 1) 2V Green, 2V Red, 2V Yellow 20mA Round with Domed Top Surface Mount, Right Angle

Download 5932-023-2431-3NF Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 5932-023-2431-3NF model

Email notifications will be applied after download.

Send part feedback

Symbol

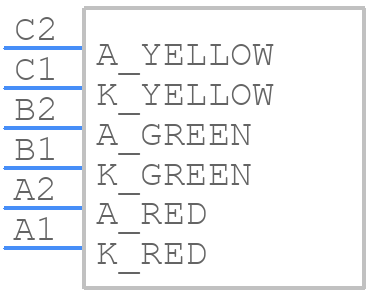

5932-023-2431-3NF - Dialight - PCB symbol

PCB Footprints

5932-023-2431-3NF - Dialight PCB footprint - Other - Other - 19.94x4.24x14.94mm

3D Models

5932-023-2431-3NF - Dialight - 3D model - Other - 19.94x4.24x14.94mm

Datasheet Download Datasheet
Stock & Prices Price & Stock for 5932-023-2431-3NF
Part Number 5932-023-2431-3NF
Manufacturer Dialight
Pin Count 6
Part Category LED (Multiple)
Package Category Other
Footprint Name Other - 19.94x4.24x14.94mm
Released Date Nov 29, 2024
Last Modified Date Mar 17, 2025 9:38 AM UTC
Pinout / Pin List Click Here (Member Only)

5932-023-2431-3NF Details

Manufacturer Part Number:
5932-023-2431-3NF
Manufacturer:
Dialight
