Please enter a minimum 3 letters or numbers
Technical Content
Part Image

595D106X9035D2T - Vishay

Description: Solid Tantalum Chip Capacitors TANTAMOUNT(TM), Conformal Coated, Maximum CV

Download 595D106X9035D2T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
595D106X9035D2T - Vishay - PCB symbol
click to zoom
PCB Footprints

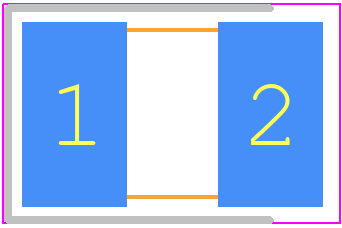

595D106X9035D2T - Vishay PCB footprint - Capacitor Chip Polarised - Capacitor Chip Polarised - 595D Case Code D
click to zoom
3D Models
595D106X9035D2T - Vishay - 3D model - Capacitor Chip Polarised - 595D Case Code D
click to zoom

595D106X9035D2T Details

  • Manufacturer Part Number:

    595D106X9035D2T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Israel

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.21.00.50

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6.75

  • Additional Feature:

    ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ

  • Capacitance:

    10 µF

  • Capacitor Type:

    TANTALUM CAPACITOR

  • Dielectric Material:

    TANTALUM (DRY/SOLID)

  • ESR:

    430 mΩ

  • Height:

    2.8 mm

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.0035 mA

  • Length:

    7.4 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, EMBOSSED PLASTIC, 7 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    35 V

  • Ripple Current:

    590 mA

  • Size Code:

    2917

  • Surface Mount:

    YES

  • Tan Delta:

    0.06

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    WRAPAROUND

  • Width:

    4.3 mm

595D106X9035D2T Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 5 seconds. It's essential to follow the recommended soldering profile to prevent damage to the capacitor.
  • The 595D106X9035D2T is designed for high-frequency applications and exhibits low equivalent series resistance (ESR) and low equivalent series inductance (ESL). It's suitable for frequencies up to 1 GHz, making it an excellent choice for high-speed digital circuits, RF circuits, and microwave applications.
  • The 595D106X9035D2T has a maximum operating temperature of 125°C (257°F), making it suitable for use in high-temperature environments. However, it's essential to derate the capacitor's voltage and current ratings according to the temperature derating curve provided in the datasheet.
  • The 595D106X9035D2T has an MSL rating of 1, which means it can withstand normal humidity levels without requiring special handling or storage procedures.
  • The 595D106X9035D2T is not designed for use in safety-critical applications, such as those requiring compliance with IEC 60384-14 or UL 810. If you need a capacitor for safety-critical applications, consider using a different part number that meets the required safety standards.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

595D106X9035D2T Overview

Use the download button to access the 595D106X9035D2T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 595D1, or try a keyword search, such as Tantalum Capacitors

Parts related to 595D106X9035D2T

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

595D106X9035D2T Alternates

Showing results

Image Part Number Model
Part Image T493D106K035BH6430 KEMET Corporation

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 35V, 10% +Tol, 10% -Tol, 10uF, Surface Mount, 2917
Part Image T493D106K035AH6331 KEMET Corporation

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 35V, 10% +Tol, 10% -Tol, 10uF, Surface Mount, 2917
Part Image T493D106K035AM6230WAFL KEMET Corporation

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 35V, 10% +Tol, 10% -Tol, 10uF, Surface Mount, 2917
Part Image T493D106K035AH64207610 KEMET Corporation

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 35V, 10% +Tol, 10% -Tol, 10uF, Surface Mount, 2917
Part Image T496D106K035ZK6410 KEMET Corporation

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 35V, 10% +Tol, 10% -Tol, 10uF, 2917
For a full list of alternate parts for 595D106X9035D2T, check out Findchips.com
