596-2424-013F - Dialight

Description: LED Circuit Board Indicators 1.6mm BiLevel Yellow Yellow

Download 596-2424-013F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

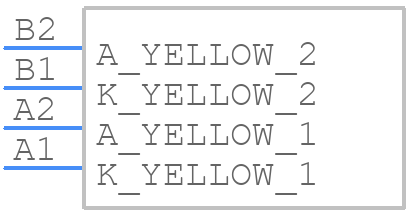

Symbol
596-2424-013F - Dialight - PCB symbol
click to zoom
PCB Footprints
596-2424-013F - Dialight PCB footprint - Other - Other - 596-2424-013F-1
click to zoom
3D Models
596-2424-013F - Dialight - 3D model - Other - 596-2424-013F-1
click to zoom

596-2424-013F Details

  • Manufacturer Part Number:

    596-2424-013F

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Dialight

  • YTEOL:

    7.12

  • Color:

    YELLOW

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • Forward Current-Max:

    0.02 A

  • Forward Voltage-Max:

    2.4 V

  • Luminous Intensity-Nom:

    20.0 mcd

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Number of LEDs in Array:

    2

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    SINGLE COLOR LED ARRAY

  • Overall Height:

    9.27 mm

  • Packing Method:

    TR, 13 INCH

  • Reverse Voltage-Max:

    5 V

  • Shape:

    ROUND

  • Size:

    1.6 mm

  • Surface Mount:

    YES

  • Viewing Angle:

    30 deg

596-2424-013F Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 596-2424-013F is -40°C to 85°C, although it can withstand storage temperatures from -40°C to 100°C.
  • Yes, the 596-2424-013F is suitable for outdoor use, as it has a waterproof rating of IP67, which means it can withstand immersion in water up to 1 meter for 30 minutes.
  • The typical lifespan of the 596-2424-013F is 50,000 hours or more, depending on operating conditions and environmental factors.
  • Yes, the 596-2424-013F is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10G peak acceleration.
  • No, the 596-2424-013F is not designed for use with dimming circuits. It is recommended to use a constant voltage or current source to ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

596-2424-013F Overview

Use the download button to access the 596-2424-013F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 596-2, or try a keyword search, such as Visible LEDs
