Description:The 5962-38294 (7164 SRAM) is organized as 8K x 8 and offers a reduced power standby mode. The low-power version also offers a battery backup data retention capability at power supply levels as low as 2V. All inputs and outputs are TTL-compatible and operation is from a single 5V supply, simplifying system designs. Fully static asynchronous circuitry is used, requiring no clocks or refreshing for operation.
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which can be found on their website. The guide includes thermal vias, heat sink recommendations, and PCB layer stack-up suggestions to ensure optimal thermal performance.
Renesas recommends a specific power sequencing scheme to ensure proper device operation. This information can be found in the device's user manual or application notes. Typically, the sequence involves powering up the core voltage (VCC) before the input/output voltage (VIO).
Renesas recommends using high-quality, low-ESR decoupling capacitors with a value of 0.1 μF to 1 μF, placed as close as possible to the device's power pins. The exact capacitor values and placement can be found in the device's datasheet or application notes.
To ensure clock signal integrity and minimize jitter, Renesas recommends using a high-quality clock source, such as a crystal oscillator or a low-jitter clock generator. Additionally, the clock signal should be routed as a differential pair, and the PCB layout should be designed to minimize noise and coupling.
Renesas provides thermal design guidelines in their datasheet and application notes. Key considerations include thermal resistance, junction temperature, and heat sink design. Engineers should also consider the device's power consumption, ambient temperature, and airflow when designing the thermal management system.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
5962-3829408MXA Overview

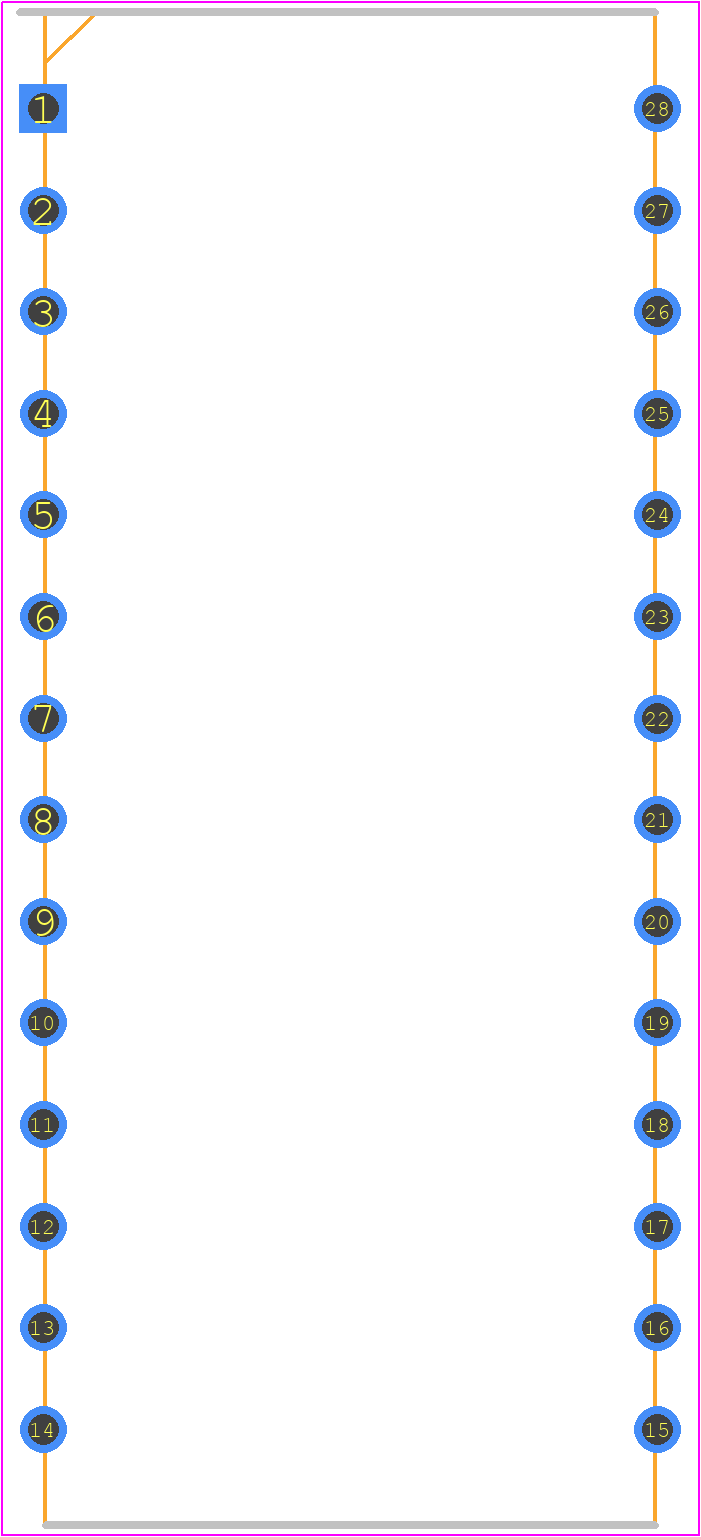

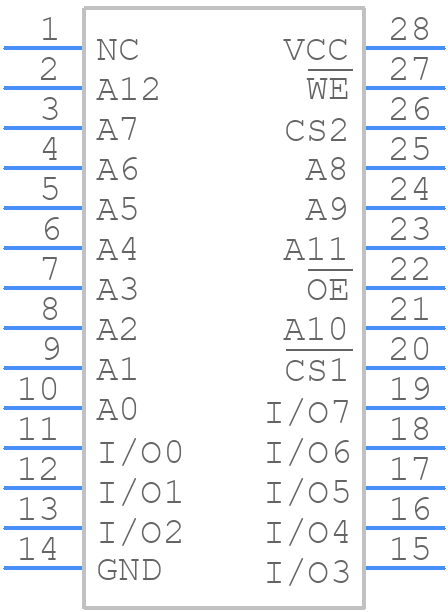

Use the download button to access the 5962-3829408MXA schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 5962-,
or try a keyword search, such as SRAMs
