5962-8687501XA - Renesas Electronics

5962-8687501XA Details

• Manufacturer Part Number:

  5962-8687501XA

• Brand Name:

  Renesas

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SB

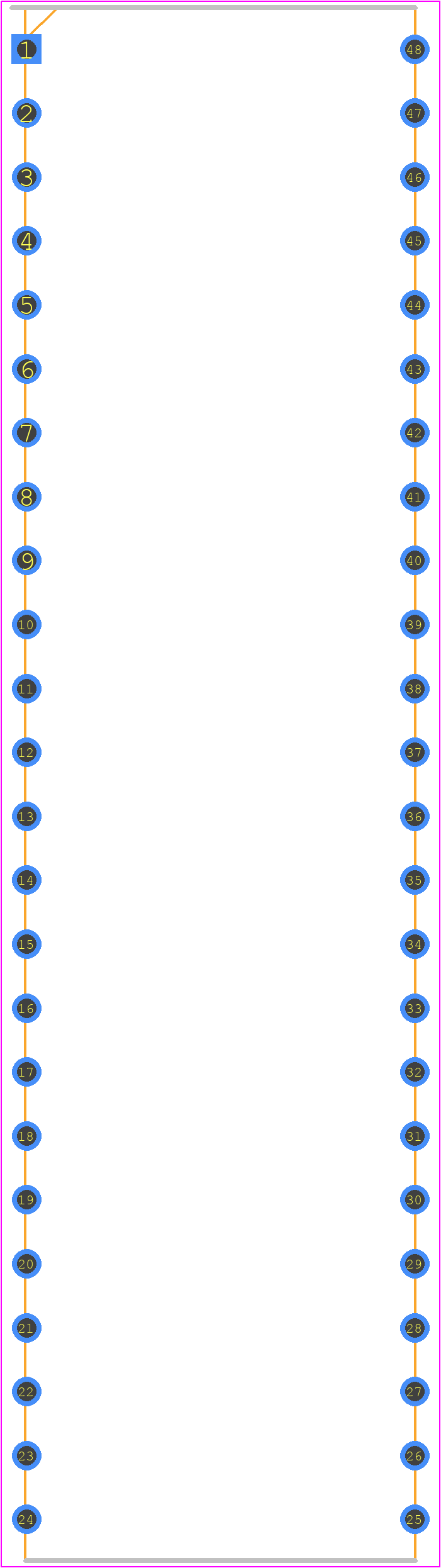

• Package Description:

  0.600 INCH, SIDE BRAZED, DIP-48

• Pin Count:

  48

• Manufacturer Package Code:

  SB48

• Country Of Origin:

  USA

• ECCN Code:

  3A001.A.2.C

• HTS Code:

  8542.32.00.41

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Access Time-Max:

  90 ns

• Additional Feature:

  INTERRUPT FLAG; AUTOMATIC POWER-DOWN

• I/O Type:

  COMMON

• JESD-30 Code:

  R-CDIP-T48

• JESD-609 Code:

  e0

• Length:

  60.96 mm

• Memory Density:

  8192 bit

• Memory IC Type:

  MULTI-PORT SRAM

• Memory Width:

  8

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Ports:

  2

• Number of Terminals:

  48

• Number of Words:

  1024 words

• Number of Words Code:

  1000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Organization:

  1KX8

• Output Characteristics:

  3-STATE

• Output Enable:

  YES

• Package Body Material:

  CERAMIC, METAL-SEALED COFIRED

• Package Code:

  DIP

• Package Equivalence Code:

  DIP48,.6

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Packing Method:

  TUBE

• Parallel/Serial:

  PARALLEL

• Peak Reflow Temperature (Cel):

  240

• Qualification Status:

  Not Qualified

• Screening Level:

  38535Q/M;38534H;883B

• Seated Height-Max:

  4.826 mm

• Standby Current-Max:

  0.03 A

• Standby Voltage-Min:

  4.5 V

• Supply Current-Max:

  0.2 mA

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  MILITARY

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  15.24 mm
