5962-8770002EA footprint, schematic symbol and 3D model by Analog Devices

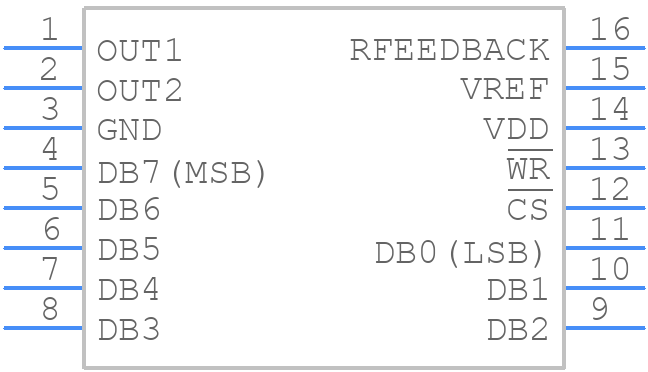

Symbol

click to zoom

PCB Footprints

5962-8770002EA - Analog Devices PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - Q-16_2024-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 5962-8770002EA
Part Number 5962-8770002EA
Manufacturer Analog Devices
Pin Count 16
Part Category Integrated Circuit
Package Category Ceramic Dual-In-Line Packages
Footprint Name Ceramic Dual-In-Line Packages - Q-16_2024-1
Released Date Nov 28, 2024
Last Modified Date Nov 28, 2024 10:53 AM UTC
Pinout / Pin List Click Here (Member Only)

5962-8770002EA Details

Manufacturer Part Number:
5962-8770002EA
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Part Life Cycle Code:
Active
Part Package Code:
DIP
Package Description:
CERAMIC, DIP-16
Pin Count:
16
Manufacturer Package Code:
Q-16
Country Of Origin:
Philippines
ECCN Code:
3A001.A.2.C
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
10
Converter Type:
D/A CONVERTER
Input Bit Code:
BINARY
Input Format:
PARALLEL, 8 BITS
JESD-30 Code:
R-GDIP-T16
JESD-609 Code:
e0
Length:
19.05 mm
Linearity Error-Max (EL):
1.9531%
Number of Bits:
8
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Package Body Material:
CERAMIC, GLASS-SEALED
Package Code:
DIP
Package Equivalence Code:
DIP16,.3
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Qualification Status:
Qualified
Screening Level:
MIL-STD-883
Seated Height-Max:
5.08 mm
Settling Time-Max:
0.5 µs
Settling Time-Nom (tstl):
0.1 µs
Supply Current-Max:
2 mA
Supply Voltage-Nom:
5 V
Surface Mount:
NO
Technology:
CMOS
Temperature Grade:
MILITARY
Terminal Finish:
Tin/Lead (Sn63Pb37)
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Width:
7.62 mm
