5962-8770101RA footprint, schematic symbol and 3D model by Analog Devices

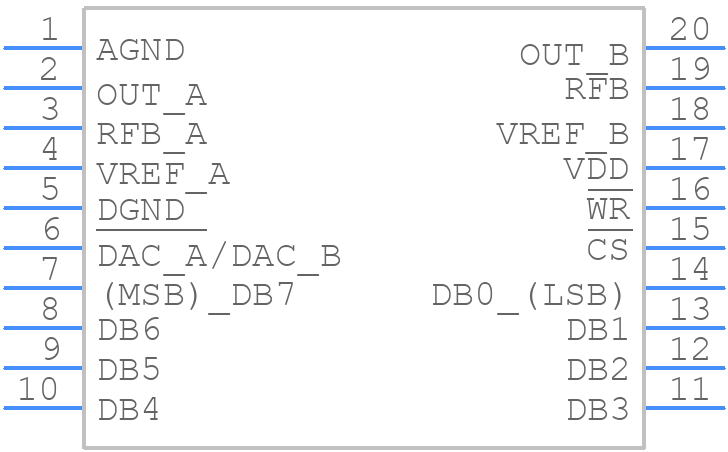

Symbol

click to zoom

PCB Footprints

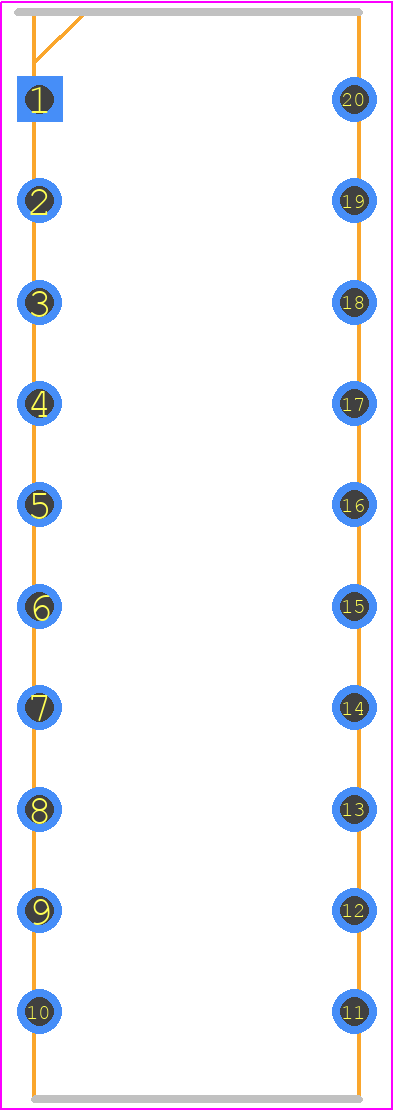

5962-8770101RA - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 20-Lead Plastic DIP (N-20)

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 5962-8770101RA
Part Number 5962-8770101RA
Manufacturer Analog Devices
Pin Count 20
Part Category Integrated Circuit
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - 20-Lead Plastic DIP (N-20)
Released Date Oct 2, 2017
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

5962-8770101RA Details

Manufacturer Part Number:
5962-8770101RA
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Part Life Cycle Code:
Not Recommended
Part Package Code:
DIP
Package Description:
0.300 INCH, GLASS SEALED, SKINNY, CERDIP-20
Pin Count:
20
Manufacturer Package Code:
Q-20
Country Of Origin:
Philippines
ECCN Code:
3A001.A.2.C
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
3
Converter Type:
D/A CONVERTER
Input Bit Code:
BINARY, OFFSET BINARY
Input Format:
PARALLEL, 8 BITS
JESD-30 Code:
R-GDIP-T20
JESD-609 Code:
e0
Length:
24.195 mm
Number of Bits:
8
Number of Functions:
2
Number of Terminals:
20
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Package Body Material:
CERAMIC, GLASS-SEALED
Package Code:
DIP
Package Equivalence Code:
DIP20,.3
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Qualification Status:
Qualified
Screening Level:
MIL-STD-883
Seated Height-Max:
5.08 mm
Settling Time-Nom (tstl):
0.18 µs
Supply Voltage-Nom:
5 V
Surface Mount:
NO
Technology:
CMOS
Temperature Grade:
MILITARY
Terminal Finish:
Tin/Lead (Sn/Pb)
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Width:
7.62 mm

5962-8770101RA Frequently Asked Questions (FAQs)

A good PCB layout for the 5962-8770101RA involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure the 5962-8770101RA operates within its specified temperature range, provide adequate heat sinking, use a thermally conductive material for the PCB, and avoid blocking airflow around the device. Additionally, consider using a thermal interface material between the device and the heat sink.
The 5962-8770101RA has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that all equipment and tools are properly grounded.
The 5962-8770101RA is not specifically designed for radiation-intensive environments. If you need a radiation-hardened device, consider using a different part number or consulting with Analog Devices Inc for custom solutions.
Use a soldering iron with a temperature range of 250°C to 260°C, and a solder with a melting point above 217°C. For rework, use a hot air rework station with a temperature range of 150°C to 200°C, and a solder wick or desoldering braid to remove excess solder.

Trust Checks

Community Provided

System Verified

Community Approved

5962-8770101RA Overview

Use the download button to access the 5962-8770101RA schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 5962-, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
