5962-88663013X - Analog Devices

Description: DAC 8-CH R-2R 8-bit 28-Pin CLCC Tube

Download 5962-88663013X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

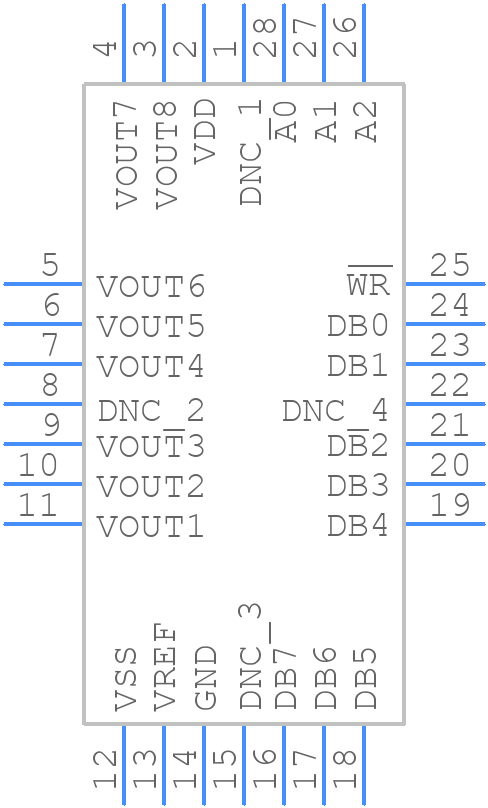

5962-88663013X - Analog Devices - PCB symbol
click to zoom
PCB Footprints
5962-88663013X - Analog Devices PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - P-28A(PLCC)
click to zoom
3D Models
5962-88663013X - Analog Devices - 3D model - Plastic Leaded Chip Carrier - P-28A(PLCC)
click to zoom

5962-88663013X Details

  • Manufacturer Part Number:

    5962-88663013X

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QLCC

  • Package Description:

    CERAMIC, LCC-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    E-28-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    3A001.A.2.C

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, 8 BITS

  • JESD-30 Code:

    S-CQCC-N28

  • JESD-609 Code:

    e0

  • Length:

    11.43 mm

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Bits:

    8

  • Number of Functions:

    8

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC28,.45SQ

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Qualification Status:

    Not Qualified

  • Screening Level:

    MIL-STD-883 Class B

  • Seated Height-Max:

    2.54 mm

  • Supply Current-Max:

    22 mA

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Width:

    11.43 mm

5962-88663013X Frequently Asked Questions (FAQs)

  • A good PCB layout for the 5962-88663013X should minimize noise and parasitic inductance. Keep the input and output traces short and separate, use a solid ground plane, and avoid routing signals under the device. Refer to Analog Devices' application notes and layout guidelines for more information.
  • To ensure the 5962-88663013X operates within its specified temperature range, provide adequate heat sinking, use a thermally conductive material for the PCB, and avoid exposing the device to extreme temperatures during storage or operation. Monitor the device's junction temperature and adjust the system design accordingly.
  • The 5962-88663013X has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Use ESD-safe materials, wrist straps, and mats, and ensure that the device is not exposed to static electricity during handling or storage.
  • The 5962-88663013X is not specifically designed for radiation-hardened applications. If you need a radiation-hardened device, consider using a different part from Analog Devices' radiation-hardened product line, such as the RH1086 or RH1087.
  • To troubleshoot issues with the 5962-88663013X, start by reviewing the datasheet and application notes. Check the device's power supply, input and output signals, and PCB layout. Use oscilloscopes and other diagnostic tools to identify the source of the issue. Consult Analog Devices' technical support resources or seek assistance from a qualified engineer if needed.
