5962-9098001MXA - Analog Devices

5962-9098001MXA Details

• Manufacturer Part Number:

  5962-9098001MXA

• Pbfree Code:

  No

• Part Life Cycle Code:

  Active

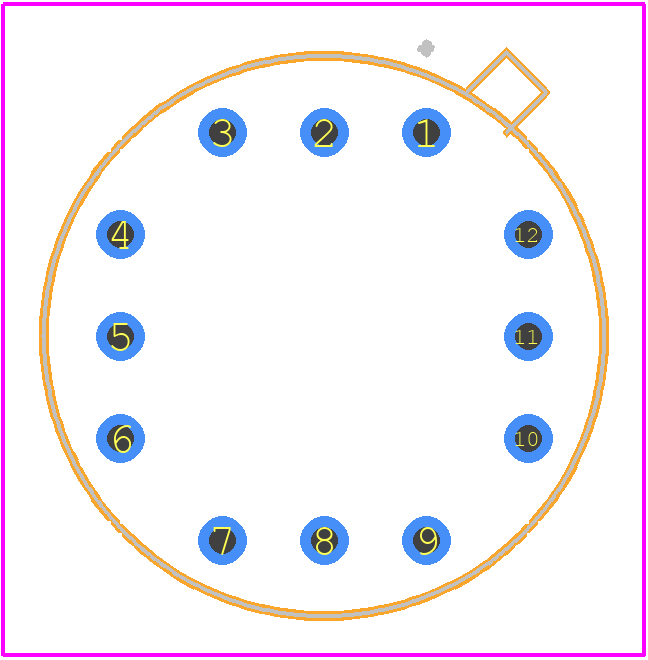

• Part Package Code:

  TO-99

• Package Description:

  TO-99, 12 PIN

• Pin Count:

  8

• Country Of Origin:

  USA

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  8.5

• Amplifier Type:

  OPERATIONAL AMPLIFIER

• Architecture:

  VOLTAGE-FEEDBACK

• Average Bias Current-Max (IIB):

  2.6 µA

• Bias Current-Max (IIB) @25C:

  0.0025 µA

• Common-mode Reject Ratio-Min:

  60 dB

• Common-mode Reject Ratio-Nom:

  72 dB

• Frequency Compensation:

  YES

• Input Offset Voltage-Max:

  4500 µV

• JESD-30 Code:

  O-MBCY-W12

• JESD-609 Code:

  e0

• Low-Bias:

  NO

• Low-Offset:

  NO

• Micropower:

  NO

• Neg Supply Voltage Limit-Max:

  -18 V

• Neg Supply Voltage-Nom (Vsup):

  -15 V

• Number of Functions:

  1

• Number of Terminals:

  12

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  METAL

• Package Code:

  TO-8

• Package Equivalence Code:

  QUAD12,.4SQ

• Package Shape:

  ROUND

• Package Style:

  CYLINDRICAL

• Power:

  NO

• Programmable Power:

  NO

• Qualification Status:

  Qualified

• Screening Level:

  MIL-STD-883

• Slew Rate-Min:

  160 V/us

• Slew Rate-Nom:

  250 V/us

• Supply Current-Max:

  16 mA

• Supply Voltage Limit-Max:

  18 V

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  NO

• Technology:

  BIPOLAR

• Temperature Grade:

  MILITARY

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  WIRE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  BOTTOM

• Unity Gain BW-Nom:

  34000

• Voltage Gain-Min:

  10000

• Wideband:

  NO
