5962-9204102M2C - Analog Devices

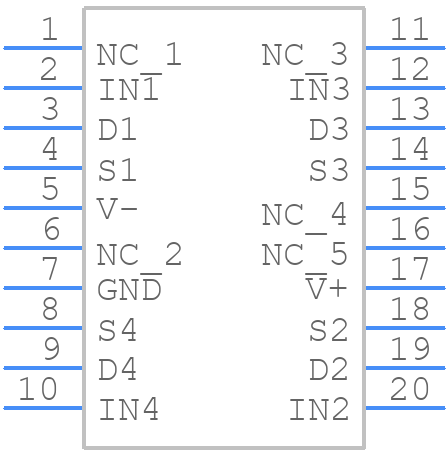

5962-9204102M2C Details

• Manufacturer Part Number:

  5962-9204102M2C

• Brand Name:

  Analog Devices Inc

• Part Life Cycle Code:

  Active

• Part Package Code:

  20-LCC-N/A

• Package Description:

  CERAMIC, LCC-20

• Pin Count:

  20

• Manufacturer Package Code:

  20-LCC-N/A

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  1999-05-28

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Analog IC - Other Type:

  SPST

• JESD-30 Code:

  S-CQCC-N20

• Length:

  8.89 mm

• Moisture Sensitivity Level:

  1

• Neg Supply Voltage-Nom (Vsup):

  -15 V

• Normal Position:

  NO

• Number of Channels:

  1

• Number of Functions:

  4

• Number of Terminals:

  20

• On-state Resistance-Max (Ron):

  85 Ω

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Output:

  SEPARATE OUTPUT

• Package Body Material:

  CERAMIC, METAL-SEALED COFIRED

• Package Code:

  QCCN

• Package Equivalence Code:

  LCC20,.35SQ

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER

• Qualification Status:

  Not Qualified

• Screening Level:

  MIL-STD-883

• Seated Height-Max:

  2.54 mm

• Signal Current-Max:

  0.03 A

• Supply Current-Max (Isup):

  0.1 mA

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  YES

• Switch-off Time-Max:

  210 ns

• Switch-on Time-Max:

  450 ns

• Switching:

  BREAK-BEFORE-MAKE

• Technology:

  CMOS

• Temperature Grade:

  MILITARY

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  QUAD

• Width:

  8.89 mm
