5962-9689202VJA - Analog Devices

Description: Aerospace 12-Bit, Current Output, Complete High Speed DAC

Download 5962-9689202VJA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

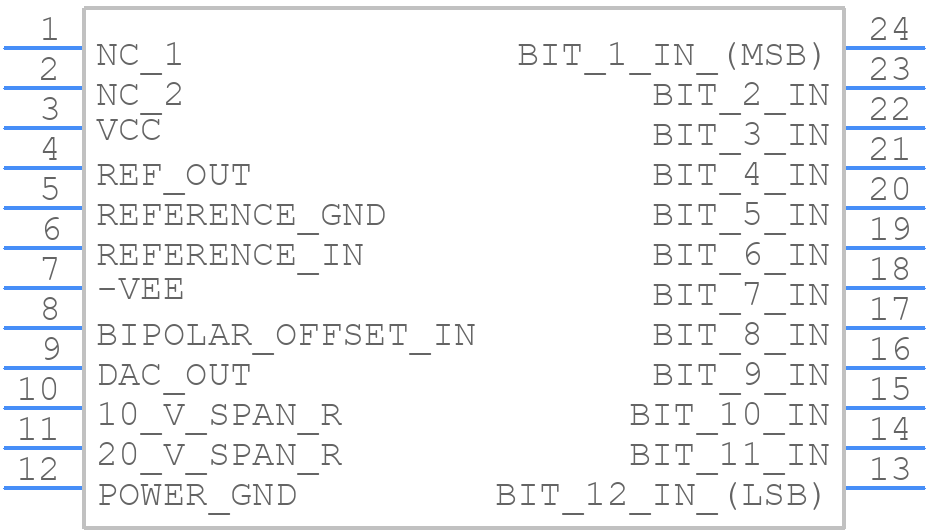

5962-9689202VJA - Analog Devices - PCB symbol
click to zoom
PCB Footprints

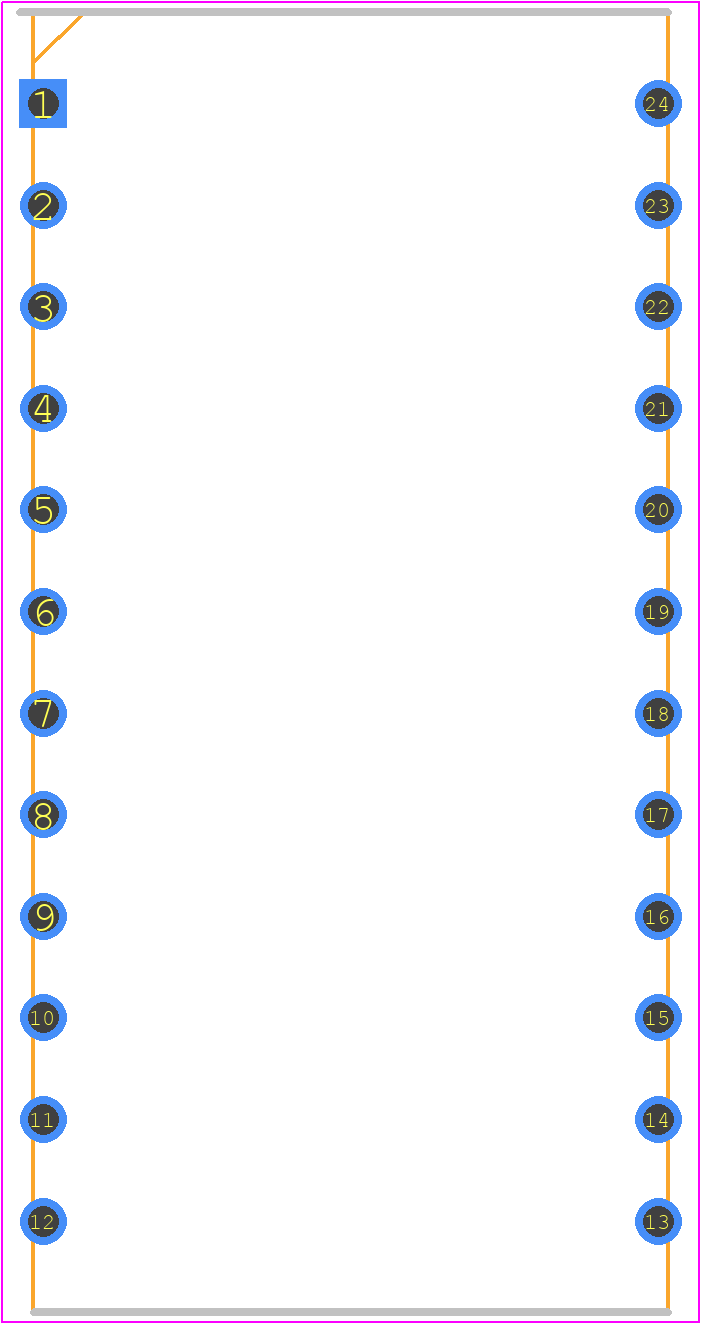

5962-9689202VJA - Analog Devices PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - Q-24-2-1
click to zoom

5962-9689202VJA Details

  • Manufacturer Part Number:

    5962-9689202VJA

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    CERAMIC, DIP-24

  • Pin Count:

    24

  • Country Of Origin:

    Philippines

  • ECCN Code:

    3A001.A.2.C

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, OFFSET BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-CDIP-T24

  • JESD-609 Code:

    e0

  • Linearity Error-Max (EL):

    0.0122%

  • Negative Supply Voltage-Nom:

    -15 V

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Qualified

  • Screening Level:

    MIL-PRF-38535 Class V

  • Supply Current-Max:

    18 mA

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

5962-9689202VJA Frequently Asked Questions (FAQs)

  • A good PCB layout for the 5962-9689202VJA involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and electromagnetic interference (EMI).
  • To ensure the 5962-9689202VJA operates within its specified temperature range, provide adequate heat sinking, avoid overheating, and ensure good airflow around the device. Also, consider using thermal interface materials to improve heat transfer.
  • Exceeding the maximum ratings of the 5962-9689202VJA can lead to permanent damage, reduced lifespan, or even catastrophic failure. Ensure that the device operates within its specified voltage, current, and temperature ratings to avoid such issues.
  • To troubleshoot issues with the 5962-9689202VJA, start by checking the power supply, clock, and input signals. Use oscilloscopes and logic analyzers to verify signal integrity and timing. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • To minimize EMI and RFI issues with the 5962-9689202VJA, use shielding, filtering, and grounding techniques. Ensure that the device is placed in a shielded enclosure, and use EMI filters on input and output lines. Follow good PCB layout practices to reduce radiation and susceptibility.
