598-8510-207F - Dialight

Description: LED 1208 SMD RED/GREEN, CLEAR LENS Dialight 598-8510-207F, 598 Series Bi-colour Green, Red LED, 565 / 635 nm 4-Pin 3020 (1208) Clear, Rectangle Lens

Download 598-8510-207F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

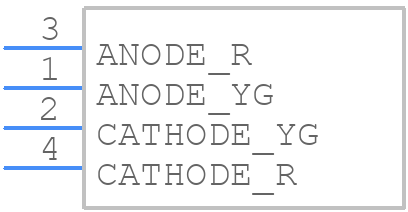

598-8510-207F - Dialight - PCB symbol
click to zoom
PCB Footprints
598-8510-207F - Dialight PCB footprint - Other - Other - 598-8510-207F-2
click to zoom
3D Models
598-8510-207F - Dialight - 3D model - Other - 598-8510-207F-2
click to zoom

598-8510-207F Details

  • Manufacturer Part Number:

    598-8510-207F

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Dialight

  • YTEOL:

    6

  • Color:

    RED/GREEN

  • Color@Wavelength:

    Green/Red

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • Forward Current-Max:

    0.02 A

  • Forward Voltage-Max:

    2.4 V

  • JESD-609 Code:

    e4

  • Lens Type:

    WATER CLEAR

  • Luminous Intensity-Nom:

    60.0/40.0 mcd

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    DUAL COLOR LED

  • Overall Height:

    1.48 mm

  • Packing Method:

    TR, 7 INCH

  • Reverse Voltage-Max:

    5 V

  • Shape:

    RECTANGULAR

  • Size:

    2 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Gold/Tin (Ni/Au/Sn)

  • Viewing Angle:

    160 deg
