599-2310-427F - Dialight

Description: LED Lighting Color 599 Red, Green, Blue (RGB) 620nm Red, 525nm Green, 455nm Blue, 4600K White 8-SMD Module

Download 599-2310-427F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

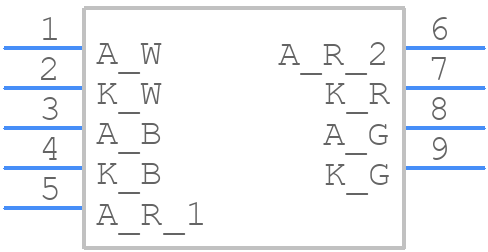

599-2310-427F - Dialight - PCB symbol
click to zoom
PCB Footprints
599-2310-427F - Dialight PCB footprint - Other - Other - 599-2310-427F-2
click to zoom
3D Models
599-2310-427F - Dialight - 3D model - Other - 599-2310-427F-2
click to zoom

599-2310-427F Details

  • Manufacturer Part Number:

    599-2310-427F

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Dialight

  • YTEOL:

    6

  • Color:

    WHITE/RED/GREEN/BLUE

  • Configuration:

    SEPARATE, 4 ELEMENTS

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    2.3 V

  • Lens Type:

    DIFFUSED YELLOW/DIFFUSED WHITE

  • Luminous Intensity-Nom:

    2387.0/955.0/1973.0/254.0 mcd

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Number of LEDs in Array:

    4

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    MULTIPLE COLOR LED ARRAY

  • Overall Height:

    0.65 mm

  • Packing Method:

    TR, 7 INCH

  • Reverse Voltage-Max:

    5 V

  • Shape:

    RECTANGULAR

  • Size:

    2.6 mm

  • Surface Mount:

    YES

  • Terminal Pitch:

    2 mm

  • Viewing Angle:

    120 deg
