The recommended torque value for the 59S22B-40MT5-Z connector is 0.6 Nm (5.3 in-lbs) for the screw threads and 1.2 Nm (10.6 in-lbs) for the nut threads.
Yes, the 59S22B-40MT5-Z connector is designed to withstand high-vibration environments, making it suitable for applications such as automotive, aerospace, and industrial systems.
Yes, the 59S22B-40MT5-Z connector is designed to operate in harsh environmental conditions, including temperatures ranging from -40°C to 125°C, and is resistant to moisture, dust, and corrosion.
The 59S22B-40MT5-Z connector has a mating cycle life of at least 500 cycles, making it suitable for applications where frequent connections and disconnections are required.
Yes, the 59S22B-40MT5-Z connector is designed to be compatible with other Rosenberger products, including cables, adapters, and accessories, ensuring a seamless connection and reliable performance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
59S22B-40MT5-Z Overview

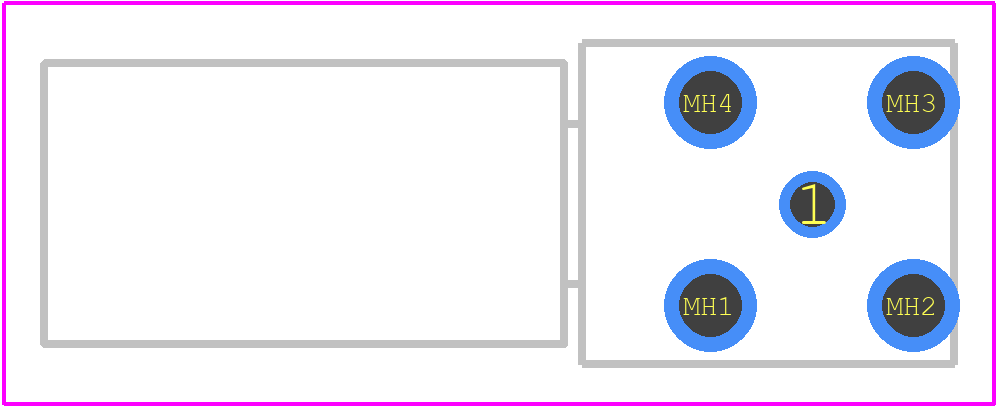

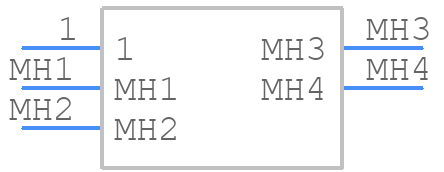

Use the download button to access the 59S22B-40MT5-Z schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 59S22,
or try a keyword search, such as Other RF Connectors
