5EHDRC-06P - Dinkle

Description: 6 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) 90°, Right Angle Through Hole

Download 5EHDRC-06P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
5EHDRC-06P - Dinkle - PCB symbol
click to zoom
PCB Footprints

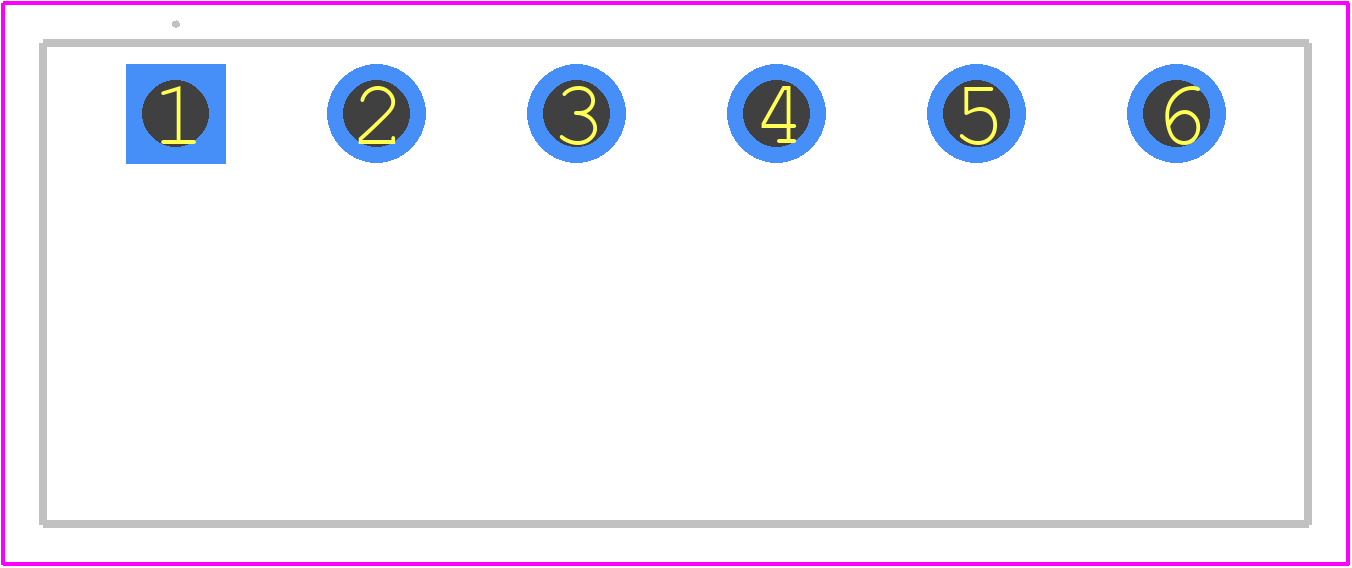

5EHDRC-06P - Dinkle PCB footprint - Other - Other - 5EHDRC-06P-6
click to zoom
3D Models
5EHDRC-06P - Dinkle - 3D model - Other - 5EHDRC-06P-6
click to zoom

5EHDRC-06P Details

  • Manufacturer Part Number:

    5EHDRC-06P

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Dinkle Enterprises

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL94V-0, POLYAMIDE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    15 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; CUL; UL; VDE

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK
