- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 5EHDRC-08P-BK
- Part Number 5EHDRC-08P-BK
- Manufacturer Dinkle
- Pin Count 8
- Part Category Connector
- Package Category Header, Shrouded - Right Angle PTH Box

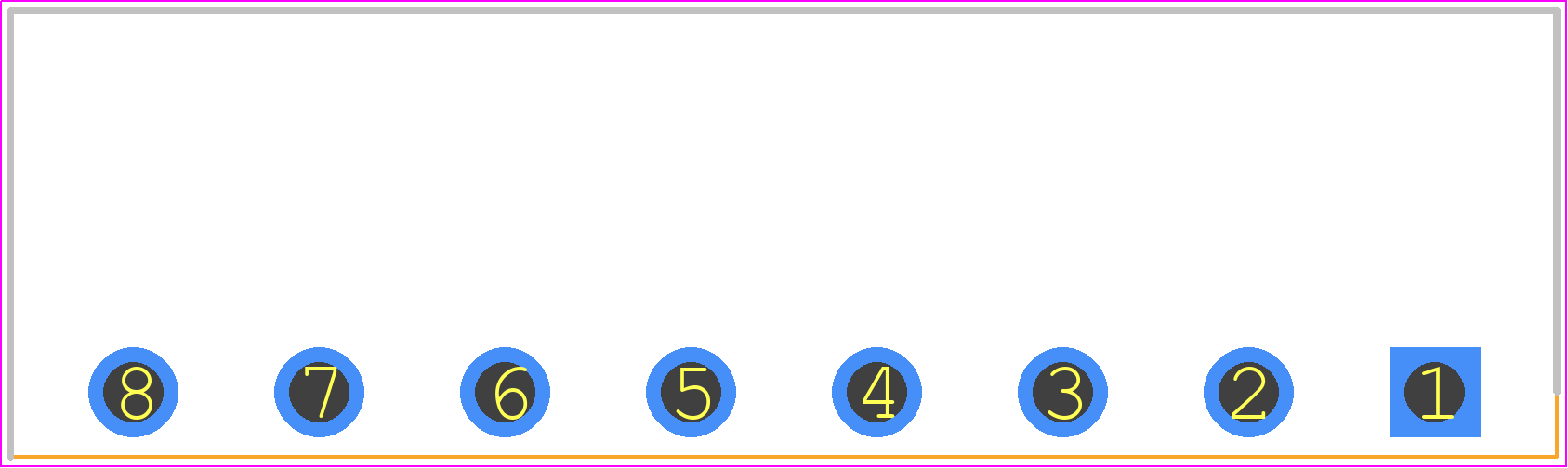

- Footprint Name Header, Shrouded - Right Angle PTH Box - 5EHDRC
- Released Date Jul 2, 2021
- Last Modified Date Nov 13, 2023 6:26 AM UTC
- Pinout / Pin List Click Here (Member Only)
5EHDRC-08P-BK Details
-
Manufacturer Part Number:
5EHDRC-08P-BK
-
Manufacturer:
Dinkle Enterprises
Trust Checks
Expert Contribution
System Verified
Community Approved
5EHDRC-08P-BK Overview
Use the download button to access the 5EHDRC-08P-BK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 5EHDR,
or try a keyword search, such as Terminals and Terminal Blocks
