Description:The 5L1503 is a series of small form factor programmable clock generators intended for low-power, consumer, battery powered applications, wearable and smart devices.The device is a 1 PLL + DCO architecture design with an external fundamental crystal or clock input. The device allows up to 3 unique frequency outputs. The 5L1503 has built-in unique features such as Proactive Power Saving (PPS) and an extreme low power DCO to support system date/time keeping clock at 32.768kHz. Dynamic Frequency Control (DFC)
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable thermal interface material, and implement a robust thermal management system, such as a heat sink or fan.
The datasheet provides general guidelines for input and output capacitors, but Renesas recommends using capacitors with low ESR, high ripple current capability, and a voltage rating that meets or exceeds the maximum input voltage. The specific requirements may vary depending on the application and operating conditions.
Renesas provides troubleshooting guides and application notes that cover common issues and their solutions. Additionally, engineers can use oscilloscopes, thermal cameras, and other diagnostic tools to identify and resolve issues.
Using a different input voltage or frequency than specified in the datasheet may affect the device's performance, efficiency, and reliability. Engineers should consult Renesas' application notes and technical support resources to determine the feasibility and potential impact of such deviations.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
5L1503-000NVGI Overview

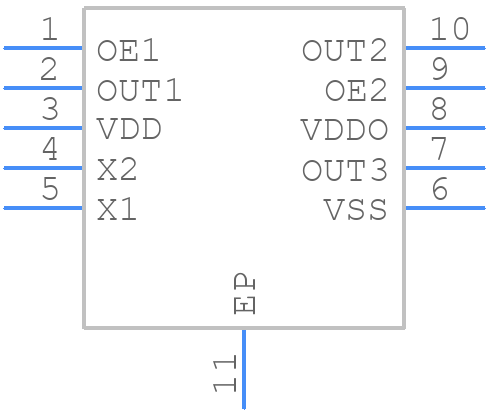

Use the download button to access the 5L1503-000NVGI schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 5L150,
or try a keyword search, such as Clock Generators
