5P1105A000NLGI - Renesas Electronics

Description: The 5P1105 is a programmable fanout buffer intended for high performance consumer, networking, industrial, computing, and data-communications applications. Configurations may be stored in on-chip One-Time Programmable (OTP) memory or changed using I²C interface. The outputs are generated from a single reference clock. The reference clock can come from one of the two redundant clock inputs. A glitchless manual switchover function allows one of the redundant clocks to be selected during normal operation. Two

Download 5P1105A000NLGI Model
Schematic

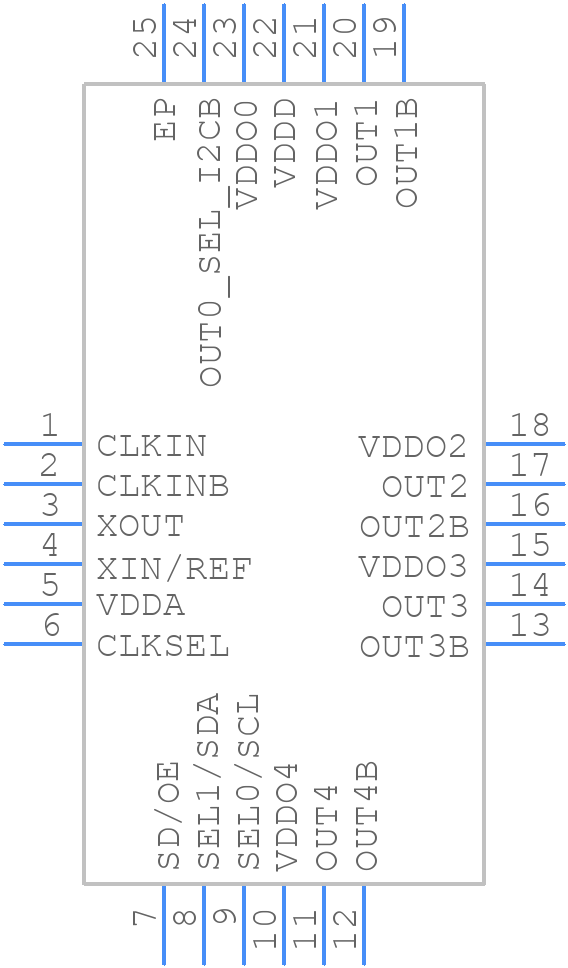

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
5P1105A000NLGI - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NLG24-ren1
click to zoom
3D Models
5P1105A000NLGI - Renesas Electronics  - 3D model - Quad Flat No-Lead - NLG24-ren1
click to zoom

5P1105A000NLGI Details

  • Manufacturer Part Number:

    5P1105A000NLGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    VFQFPN

  • Package Description:

    VFQFPN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    NLG24P2

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    8

  • Family:

    5P

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Max I(ol):

    0.015 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of True Outputs:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TRAY

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    5 mA

  • Same Edge Skew-Max (tskwd):

    0.035 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

  • fmax-Min:

    350 MHz

5P1105A000NLGI Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (AP6111) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • Renesas recommends using a low-ESR capacitor (e.g., 10uF) for power decoupling, and placing it as close as possible to the VCC pin. Additionally, ensure the power supply is stable and within the recommended operating range (1.14V to 1.26V).
  • The 5P1105A000NLGI has an operating temperature range of -40°C to +125°C, but it's recommended to operate within -20°C to +85°C for optimal performance and reliability.
  • Renesas provides a programming guide in their datasheet and application notes, which includes information on register addresses, bit assignments, and programming sequences. Additionally, Renesas offers development tools and software (e.g., CubeSuite+) to simplify the programming process.
  • Renesas recommends using the default PLL settings, but if customization is required, refer to the datasheet and application notes for guidelines on PLL frequency selection, loop filter design, and stability considerations.
