5P49V5901B000NLGI - Renesas Electronics

Description: The IDT 5P49V5901 is low-power programmable clock generator with best-in-class jitter performance and design flexibility with universal outputs capable of generating any output frequency. The 5P49V5901 is intended for high performance consumer, networking, industrial, computing, and data-communications applications. Configurations may be stored in on-chip One-Time Programmable (OTP) memory or changed using I2C interface. This is IDTs fifth generation of programmable clock technology (VersaClock 5).The frequ

Download 5P49V5901B000NLGI Model

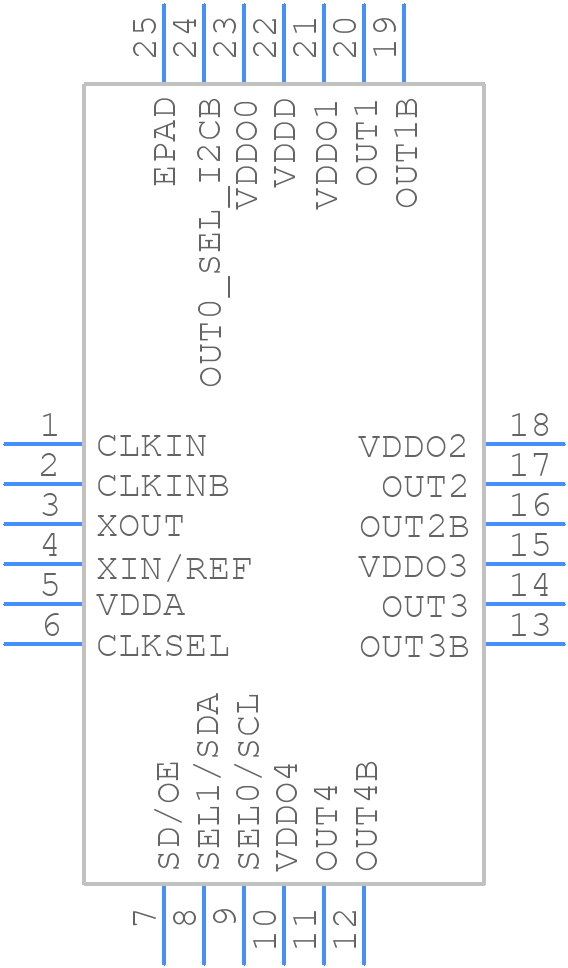

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
5P49V5901B000NLGI - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NLG24-ren1
click to zoom
3D Models
5P49V5901B000NLGI - Renesas Electronics  - 3D model - Quad Flat No-Lead - NLG24-ren1
click to zoom

5P49V5901B000NLGI Details

  • Manufacturer Part Number:

    5P49V5901B000NLGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    VFQFPN

  • Package Description:

    VFQFPN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    NLG24P2

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    3

  • Additional Feature:

    IT ALSO OPREATES AT 2.5V AND 3.3V NOMINAL SUPPLY

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    350 MHz

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TRAY

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    350 MHz

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    34 mA

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PROCESSOR SPECIFIC

5P49V5901B000NLGI Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VDD, and then the clock signal. This ensures proper initialization and prevents damage to the device.
  • To ensure a stable state during power-up, it is recommended to add a power-on reset (POR) circuit to the VCC pin, which holds the device in reset until the power supply is stable.
  • The maximum clock frequency for the 5P49V5901B000NLGI is 350 MHz. Exceeding this frequency may cause the device to malfunction or become unstable.
  • To handle thermal management, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the thermal pads on the package. The maximum junction temperature is 150°C.
  • To minimize noise and ensure signal integrity, use a multi-layer PCB with a solid ground plane, keep clock and signal traces short and shielded, and avoid crossing signal lines over the clock signal.
