5P49V5908B000NDGI - Renesas Electronics

Description: The 5P49V5908 is a programmable clock generator intended for high performance consumer, networking, industrial, computing, and data communications applications. Configurations may be stored in on-chip One-Time Programmable (OTP) memory or changed using I2C interface. This is Renesas' fifth generation of programmable clock technology (VersaClock® 5). The frequencies are generated from a single reference clock or crystal. Two select pins allow up to 4 different configurations to be programmed and accessible u

Download 5P49V5908B000NDGI Model

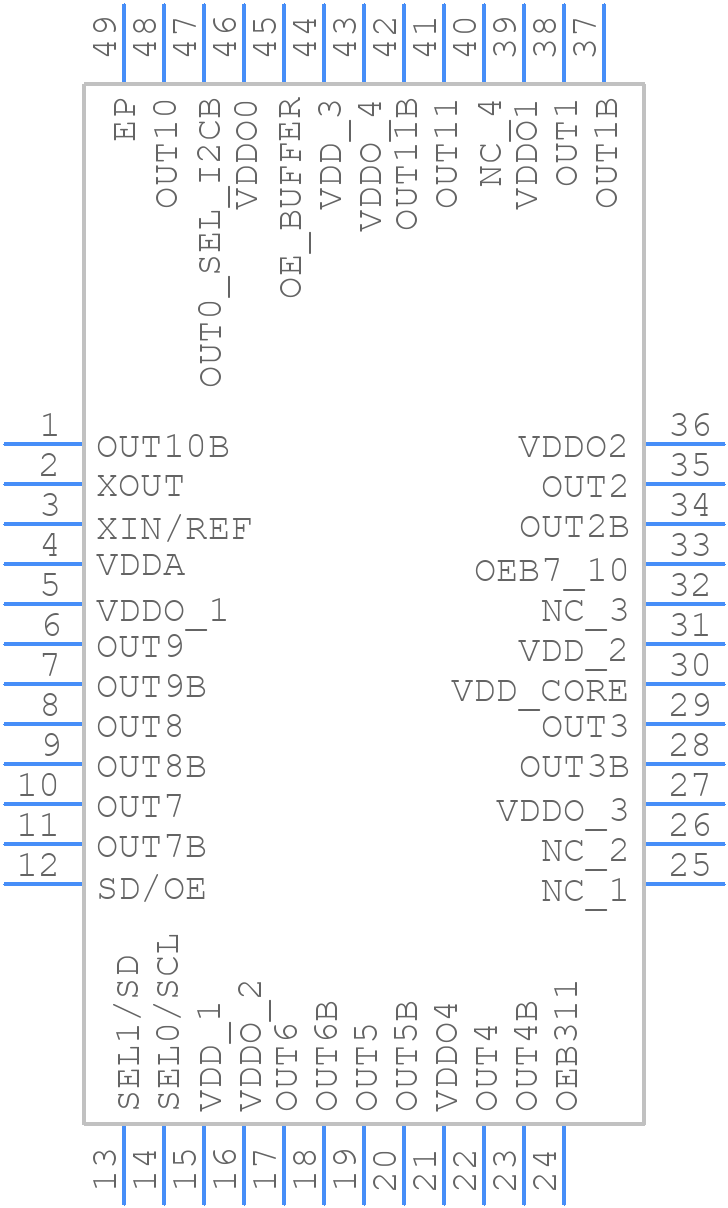

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
5P49V5908B000NDGI - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NDG48P2_2
click to zoom
3D Models
5P49V5908B000NDGI - Renesas Electronics  - 3D model - Quad Flat No-Lead - NDG48P2_2
click to zoom

5P49V5908B000NDGI Details

  • Manufacturer Part Number:

    5P49V5908B000NDGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    VFQFPN

  • Package Description:

    VFQFPN-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    NDG48P2

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    3

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    350 MHz

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.24SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    200 MHz

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    1.89 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PROCESSOR SPECIFIC

5P49V5908B000NDGI Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application notes (e.g., AN9864) and evaluation board documentation. It's essential to follow these guidelines to minimize noise, ensure signal integrity, and optimize performance.
  • The 5P49V5908B000NDGI is a highly configurable device. Renesas provides a ClockGen tool that allows you to generate configuration files for specific frequency outputs. You can also refer to the datasheet and application notes for guidance on register settings and configuration options.
  • The 5P49V5908B000NDGI can generate output frequencies up to 1.2 GHz. However, the maximum achievable frequency may depend on the specific configuration, output load, and system design. It's recommended to consult the datasheet and application notes for more information.
  • To minimize jitter, it's essential to follow proper PCB design and layout practices, use a low-noise power supply, and ensure proper termination and signal routing. Additionally, Renesas provides guidelines for optimizing jitter performance in their application notes and datasheet.
  • Yes, the 5P49V5908B000NDGI can be used in redundant or fail-safe system designs. Renesas provides guidance on implementing redundant clocking schemes in their application notes and datasheet. You can also consult with Renesas support or a qualified design engineer for specific implementation details.
