5P83904CMGK - Renesas Electronics

Description: The 5P83904 is a high-performance, 1-to-4 crystal input to LVCMOS fanout buffer with output enable pins. This device accepts a fundamental mode crystal from 10 MHz to 40 MHz and outputs LVCMOS clocks with best-in-class phase noise performance.The 5P83904 features a synchronous glitch-free Output Enable function to eliminate any intermediate incorrect output clock cycles when enabling or disabling outputs. It comes in standard TSSOP packages or small QFN packages and can operate from 1.8 V to 3.3 V supplies.

Download 5P83904CMGK Model

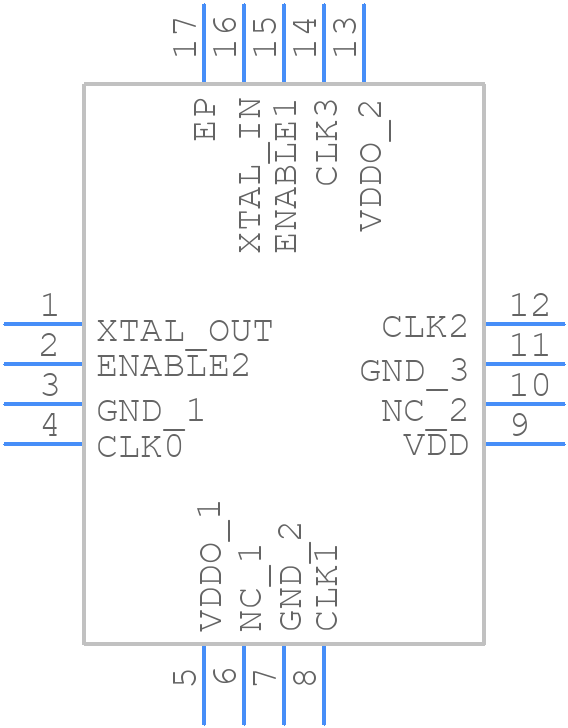

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
5P83904CMGK - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 5P83905CMGK
click to zoom
3D Models
5P83904CMGK - Renesas Electronics  - 3D model - Quad Flat No-Lead - 5P83905CMGK
click to zoom

5P83904CMGK Details

  • Manufacturer Part Number:

    5P83904CMGK

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    COL

  • Pin Count:

    16

  • Manufacturer Package Code:

    CMG16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Additional Feature:

    IT ALSO OPERATES AT 2.5V AND 3.3V NOMINAL SUPPLY

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    2.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    25 MHz

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    40 MHz

  • Seated Height-Max:

    0.55 mm

  • Supply Voltage-Max:

    1.89 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    2.5 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, OTHER

5P83904CMGK Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 5P83904CMGK is -40°C to +85°C.
  • The clock input for the 5P83904CMGK can be configured using the CLKIN pin, which accepts a clock signal from an external oscillator or a crystal oscillator. The clock frequency can be set to 10 MHz, 12 MHz, or 14.318 MHz.
  • The maximum current consumption of the 5P83904CMGK is 350 mA at 3.3V and 25°C.
  • The 5P83904CMGK has a built-in power management feature that allows for dynamic voltage and frequency scaling. This can be implemented using the Power Management Interface (PMI) and the Clock Control Unit (CCU).
  • The maximum frequency of the 5P83904CMGK is 400 MHz.
