5P83905CMGK - Renesas Electronics

Description: The 5P83905 is a high-performance, 1-to-6 crystal input to LVCMOS fanout buffer with output enable pins. This device accepts a fundamental mode crystal from 10 MHz to 40 MHz and outputs LVCMOS clocks with best-in-class phase noise performance.The 5P83905 features a synchronous glitch-free Output Enable function to eliminate any intermediate incorrect output clock cycles when enabling or disabling outputs. It comes in standard TSSOP packages or small QFN packages and can operate from 1.8 V to 3.3 V supplies.

Download 5P83905CMGK Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

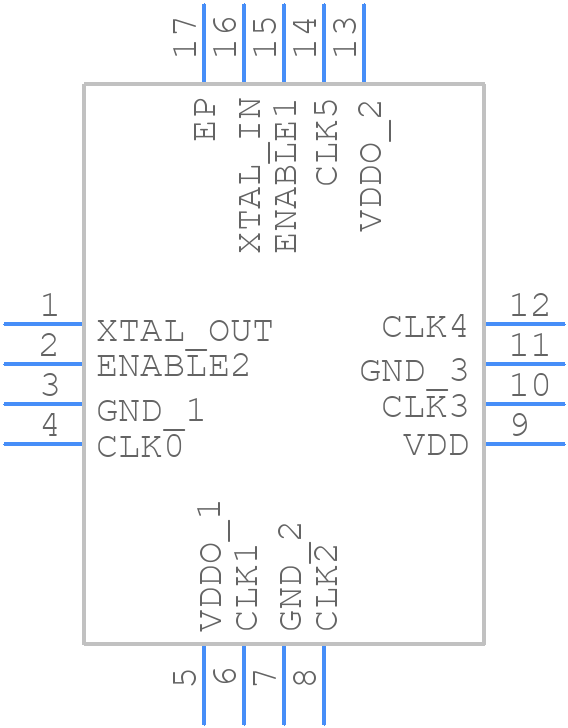

5P83905CMGK - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
5P83905CMGK - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 5P83905CMGK
click to zoom
3D Models
5P83905CMGK - Renesas Electronics - 3D model - Quad Flat No-Lead - 5P83905CMGK
click to zoom

5P83905CMGK Details

  • Manufacturer Part Number:

    5P83905CMGK

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    COL

  • Pin Count:

    16

  • Manufacturer Package Code:

    CMG16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Additional Feature:

    IT ALSO OPERATES AT 2.5V AND 3.3V NOMINAL SUPPLY

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    2.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    25 MHz

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    40 MHz

  • Seated Height-Max:

    0.55 mm

  • Supply Voltage-Max:

    1.89 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    2.5 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, OTHER

5P83905CMGK Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APL-AN-1201) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The 5P83905CMGK has a built-in power sequencing feature. To implement it, connect the PWRSEQ pin to the desired power rail, and configure the power sequencing timing using the device's registers. Refer to the datasheet and application notes for specific implementation details.
  • The 5P83905CMGK has an operating temperature range of -40°C to +85°C. However, it's essential to consider the device's thermal characteristics and implement proper thermal management to ensure reliable operation within this range.
  • Yes, the 5P83905CMGK is designed to support redundant and fault-tolerant systems. It has built-in features such as error detection and correction, and can be configured to work in redundant modes. Consult the datasheet and application notes for specific implementation details.
  • Renesas provides a troubleshooting guide in their application note (APL-AN-1202) which covers common issues, error detection, and debugging techniques. Additionally, consult the datasheet and contact Renesas support for further assistance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

5P83905CMGK Overview

Use the download button to access the 5P83905CMGK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 5P839, or try a keyword search, such as Clock Generators
