Description:The IDT5V41129 is a spread spectrum clock generator that supports PCI-Express Gen1 and Ethernet requirements.The device is used for PC or embedded systems to substantially reduce electromagnetic interference (EMI). The device provides two differential (HCSL) spread spectrum outputs. The spread type and amount are configured via select pin. Using IDT’s patented Phase-Locked Loop (PLL) techniques, the device takes a 25 MHz crystal input and produces two pairs of differential outputs at 25 MHz, 100 MHz, 125 MH
Renesas provides a recommended PCB layout guide in their application notes (e.g., AN983) and design guides (e.g., DG-00234). It's essential to follow these guidelines to ensure optimal performance, reduce noise, and minimize EMI.
The 5V41129PGGI has a thermal junction-to-case rating of 30°C/W. Ensure good thermal conductivity by using a heat sink, thermal interface material, and a PCB design that allows for efficient heat dissipation. Refer to Renesas' thermal management guidelines (e.g., AN974) for more information.
The input clock signal should be a stable, low-jitter clock source with a frequency range of 10 MHz to 40 MHz. The clock signal should also meet the specified amplitude and rise/fall time requirements (see datasheet section 6.3).
To configure the 5V41129PGGI for low-power operation, use the Power Management Interface (PMI) to control the power modes. Refer to the datasheet section 7.3 for PMI register settings and power mode descriptions. Additionally, consider using the device's built-in power-saving features, such as the Auto-Power-Save (APS) mode.
The recommended settings for the PLL and clock distribution can be found in the datasheet section 6.4. It's essential to follow these guidelines to ensure proper clock signal generation and distribution. Additionally, consider using Renesas' Clock Design Tool (CDT) to simplify the clock configuration process.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
5V41129PGGI Overview

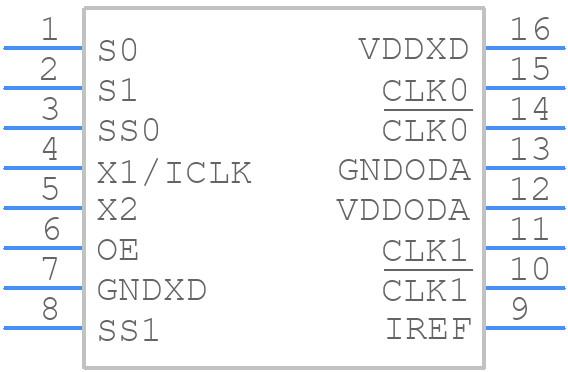

Use the download button to access the 5V41129PGGI schematic symbol, PCB footprint, and 3D model.
