5V41234NLG - Renesas Electronics

Description: The IDT5V41234 is a PCIe Gen2/3 compliant spread spectrum capable clock generator. The device has 1 differential HCSL output and can be used in communication or embedded systems to substantially reduce electro-magnetic interference (EMI). Spread spectrum can be enabled via a select pin.

Download 5V41234NLG Model

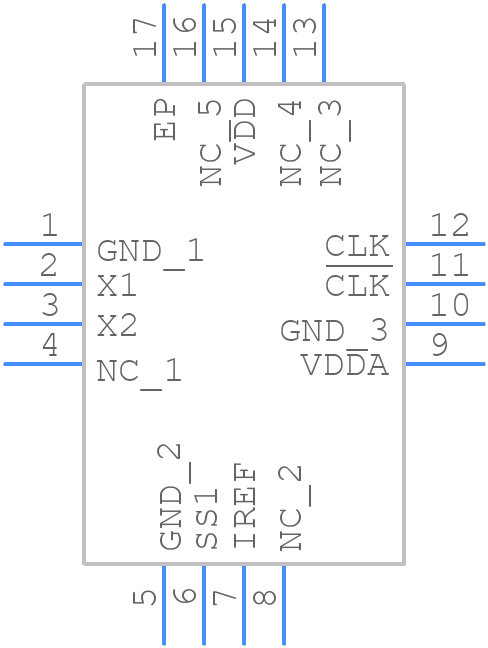

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
5V41234NLG - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NLG16P2_1
click to zoom
3D Models
5V41234NLG - Renesas Electronics  - 3D model - Quad Flat No-Lead - NLG16P2_1
click to zoom

5V41234NLG Details

  • Manufacturer Part Number:

    5V41234NLG

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    VFQFPN

  • Package Description:

    QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    NLG16P2

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Output Clock Frequency-Max:

    100 MHz

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    25 MHz

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.05 mm

  • Supply Current-Max:

    70 mA

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PROCESSOR SPECIFIC

5V41234NLG Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application notes (e.g., AN9834) and design guides (e.g., RL78/G14 Group PCB Layout Guide). It's essential to follow these guidelines to ensure optimal performance, reduce noise, and prevent signal integrity issues.
  • The 5V41234NLG has a built-in POR and BOD circuit. To implement POR, connect the VCC pin to a power source, and the device will automatically reset when the voltage falls below the POR threshold. For BOD, connect the VCC pin to a power source, and the device will reset when the voltage falls below the BOD threshold. You can also use external resistors and capacitors to adjust the POR and BOD thresholds.
  • The maximum clock frequency for the 5V41234NLG is 32 MHz. However, the actual clock frequency may vary depending on the system design, clock source, and operating conditions. It's essential to consult the datasheet and application notes for specific guidance on clock frequency selection.
  • The 5V41234NLG has an internal oscillator circuit that can be configured using external resistors and capacitors. Renesas provides guidelines for oscillator circuit design in their application notes (e.g., AN9834). It's essential to follow these guidelines to ensure optimal oscillator performance and reduce noise.
  • The 5V41234NLG has a maximum junction temperature (Tj) of 150°C. To ensure reliable operation, it's essential to follow thermal management guidelines, such as using a heat sink, thermal interface material, and ensuring good airflow. Renesas provides thermal management guidelines in their datasheet and application notes.
