Description:The 5V41235 is a PCIe Gen2/3 compliant spread spectrum capable clock generator. The device has 2 differential HCSL outputs and can be used in communication or embedded systems to substantially reduce electro-magnetic interference (EMI). The spread amount and output frequency are selectable via select pins. The 5V41235 can also supply 25 MHz, 125 MHz and 200 MHz outputs for applications such as Ethernet.
Renesas provides a recommended PCB layout guide in their application notes (e.g., AN9834) and design guides (e.g., DG-00234). It's essential to follow these guidelines to ensure optimal performance, reduce noise, and prevent signal integrity issues.
The 5V41235NLG has a thermal pad on the bottom of the package. Ensure good thermal conductivity by using a thermal interface material (e.g., thermal tape or thermal grease) and a heat sink or thermal vias on the PCB. Follow Renesas' thermal design guidelines (e.g., AN9835) for more information.
The input clock signal should meet the specifications outlined in the datasheet (e.g., frequency, duty cycle, and jitter). Additionally, ensure the clock signal is clean and free from noise by using a clock buffer or a dedicated clock source. Renesas recommends using a clock signal with a frequency of 25 MHz or 50 MHz for optimal performance.
To configure the 5V41235NLG for low-power operation, refer to the power management section in the datasheet. You can use the Power Down (PD) pin to put the device in a low-power state. Additionally, adjust the clock frequency, disable unused features, and optimize the system design to minimize power consumption.
The PLL settings depend on the specific application and clock frequency. Refer to the datasheet and application notes (e.g., AN9834) for recommended PLL settings and configuration guidelines. It's essential to ensure the PLL is properly configured to maintain clock signal integrity and stability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
5V41235NLG Overview

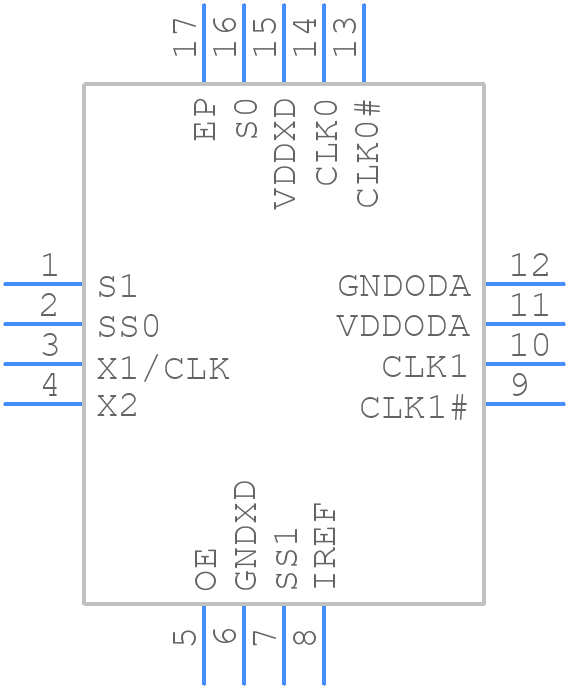

Use the download button to access the 5V41235NLG schematic symbol, PCB footprint, and 3D model.
