5V41236PGGI - Renesas Electronics

Description: The 5V41236 is a PCIe Gen2/3 compliant spread-spectrum-capable clock generator. The device has 4 differential HCSL outputs and can be used in communication or embedded systems to substantially reduce electro-magnetic interference (EMI). The spread amount and output frequency are selectable via select pins.

Download 5V41236PGGI Model
Schematic
symbols

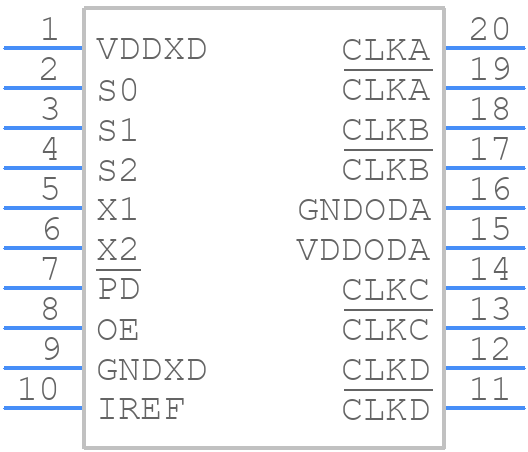

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
5V41236PGGI - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PGG20_
click to zoom
3D Models
5V41236PGGI - Renesas Electronics  - 3D model - Small Outline Packages - PGG20_
click to zoom

5V41236PGGI Details

  • Manufacturer Part Number:

    5V41236PGGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    20

  • Manufacturer Package Code:

    PGG20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    6

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    200 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    25 MHz

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    125 mA

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PROCESSOR SPECIFIC

5V41236PGGI Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by a stable clock input. This ensures proper initialization of the internal PLL and clock generation.
  • Allow at least 10ms for the internal PLL to lock after power-up. You can monitor the LOCK pin to ensure the PLL is locked before using the generated clock outputs.
  • The input clock frequency deviation should be within ±100 ppm to ensure proper operation of the 5V41236PGGI.
  • No, the 5V41236PGGI is not designed to work with spread spectrum clock inputs. A stable, non-modulated clock input is required for proper operation.
  • Use the Renesas Electronics Corporation's application notes and evaluation boards as a reference to determine the optimal values for the external resistors and capacitors.
