5V49EE501NLGI8 - Renesas Electronics

Description: The 5V49EE501 is a programmable clock generator intended for high performance data-communications, telecommunications, consumer, and networking applications. There are four internal PLLs, each individually programmable, allowing for four unique non-integer-related frequencies. The frequencies are generated from a single reference clock. The reference clock can come from one of the two redundant clock inputs. Automatic or manual switchover function allows any one of the redundant clocks to be selected during

Download 5V49EE501NLGI8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

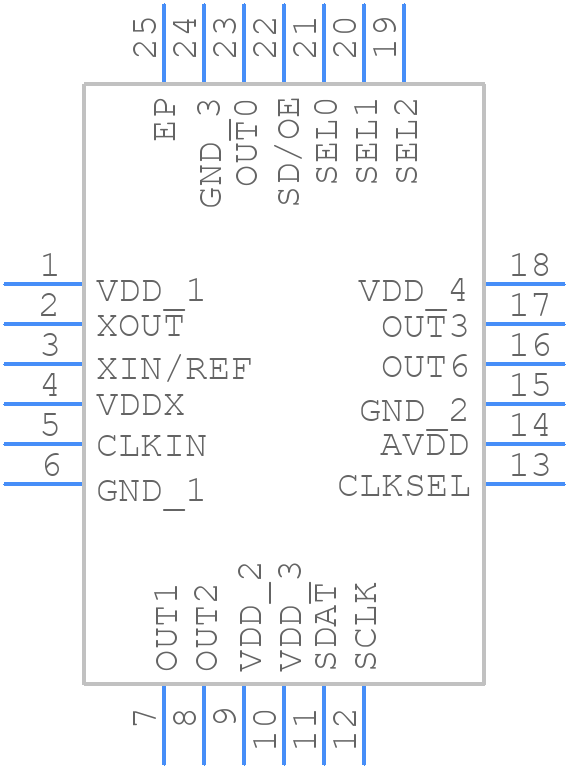

5V49EE501NLGI8 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
5V49EE501NLGI8 - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NLG24P1*
click to zoom
3D Models
5V49EE501NLGI8 - Renesas Electronics - 3D model - Quad Flat No-Lead - NLG24P1*
click to zoom

5V49EE501NLGI8 Details

  • Manufacturer Part Number:

    5V49EE501NLGI8

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    VFQFPN

  • Package Description:

    QFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    NLG24P1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    3

  • JESD-30 Code:

    S-XQCC-N24

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    500 MHz

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    200 MHz

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    210 mA

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PROCESSOR SPECIFIC

5V49EE501NLGI8 Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application notes (e.g., AN502) and design guides (e.g., DG501). It's essential to follow these guidelines to ensure optimal performance, reduce noise, and minimize signal integrity issues.
  • The 5V49EE501NLGI8 has a complex clocking system. Renesas provides a Clock Domain Crossing (CDC) guide and a Clock Tree Configuration tool to help configure the clock settings. Additionally, the device's user manual and application notes provide detailed information on clock configuration and management.
  • The 5V49EE501NLGI8 has specific power sequencing requirements to ensure proper operation. Renesas recommends following the power-up and power-down sequences outlined in the device's user manual and application notes to prevent damage or malfunction.
  • Renesas provides guidelines for implementing JTAG boundary scan testing in their application notes (e.g., AN503). It's essential to follow these guidelines to ensure reliable testing and debugging of the device.
  • The 5V49EE501NLGI8 has thermal management requirements to prevent overheating. Renesas recommends following the thermal design guidelines outlined in the device's user manual and application notes, including using thermal vias, heat sinks, and thermal interface materials as needed.
