5V49EE701NDGI8 - Renesas Electronics

Description: The 5V49EE701 is a programmable clock generator intended for high performance data-communications, telecommunications, consumer, and networking applications. There are four internal PLLs, each individually programmable, allowing for four unique non-integer-related frequencies. The frequencies are generated from a single reference clock. The reference clock can come from one of the two redundant clock inputs. Automatic or manual switchover function allows any one of the redundant clocks to be selected during

Download 5V49EE701NDGI8 Model

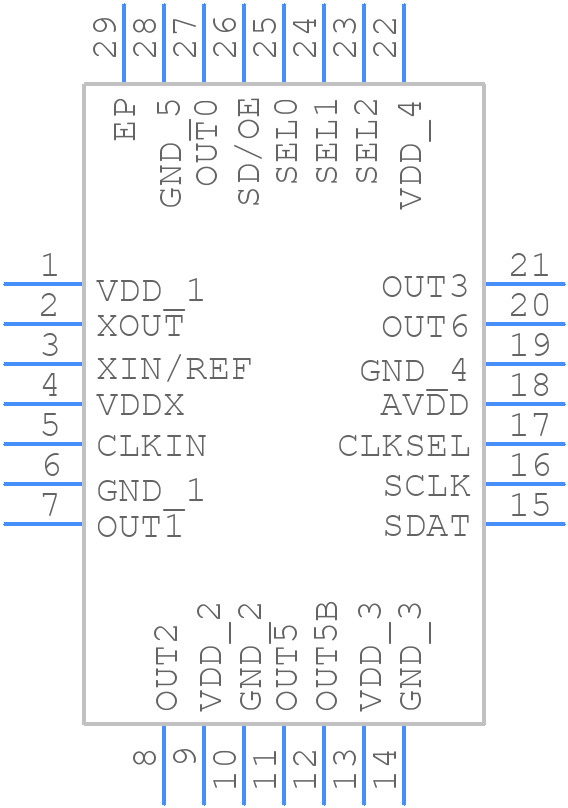

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
5V49EE701NDGI8 - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 28-pin QFN
click to zoom
3D Models
5V49EE701NDGI8 - Renesas Electronics  - 3D model - Quad Flat No-Lead - 28-pin QFN
click to zoom

5V49EE701NDGI8 Details

  • Manufacturer Part Number:

    5V49EE701NDGI8

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    VFQFPN

  • Pin Count:

    28

  • Manufacturer Package Code:

    NDG28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-30 Code:

    S-XQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    500 MHz

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.16SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    400 MHz

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    210 mA

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PROCESSOR SPECIFIC

5V49EE701NDGI8 Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (R01AN4461EJ0100) which includes thermal design considerations, such as placing thermal vias under the device, using a solid ground plane, and minimizing thermal resistance.
  • Renesas recommends a specific power sequencing scheme in their datasheet, which involves powering up the VCCIO and VCC cores in a specific order. Additionally, they provide a power sequencing diagram in their application note (R01AN4461EJ0100).
  • The 5V49EE701NDGI8 requires a high-quality input clock signal with a specific frequency range (25-100 MHz) and jitter tolerance (±100 ppm). Renesas recommends using a clock generator or oscillator that meets these requirements, such as the Renesas RX-8053IB-25M-H7 clock generator.
  • Renesas provides power-saving features such as dynamic voltage and frequency scaling, clock gating, and power gating. Engineers can optimize the device for low power consumption by using these features, reducing clock frequencies, and minimizing power consumption in idle modes.
  • Renesas provides recommended PLL settings in their datasheet, including the PLL input frequency range, output frequency range, and loop filter settings. Engineers should consult the datasheet and application notes for specific guidance on PLL configuration.
