6-5173280-3 - TE Connectivity

Description: Body Features: Connector Profile Standard | Primary Product Color Black | Configuration Features: Number of Positions 50 | Number of Rows 2 | PCB Mount Orientation Vertical | Contact Features: Contact Shape & Form Rectangular | Contact Mating Area Plating Material Thickness 30 MICIN | PCB Contact Termination Area Plating Material Tin | Contact Base Material Phosphor Bronze | Contact Current Rating (Max) 1 AMP | PCB Contact Termination Area Plating Material Tin over Nickel | Contact Mating Area Plating Mater

Download 6-5173280-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
6-5173280-3 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

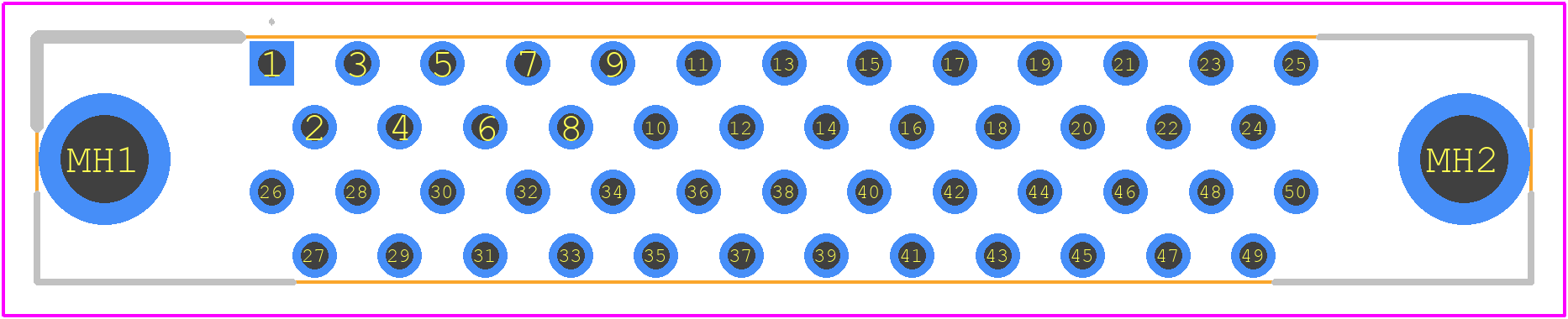

6-5173280-3 - TE Connectivity PCB footprint - Other - Other - 6-5173280-3-3
click to zoom
3D Models
6-5173280-3 - TE Connectivity - 3D model - Other - 6-5173280-3-3
click to zoom

6-5173280-3 Details

  • Manufacturer Part Number:

    6-5173280-3

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    16 Weeks, 4 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.5

  • Body/Shell Style:

    PLUG

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1A

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Rated Current (Signal):

    1 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.122 inch

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    50

  • UL Flammability Code:

    94V-0
