6-520314-1 - TE Connectivity

Description: Trio-Mate,FFC,receptacle,r/a,1row,11way

Download 6-520314-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
6-520314-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

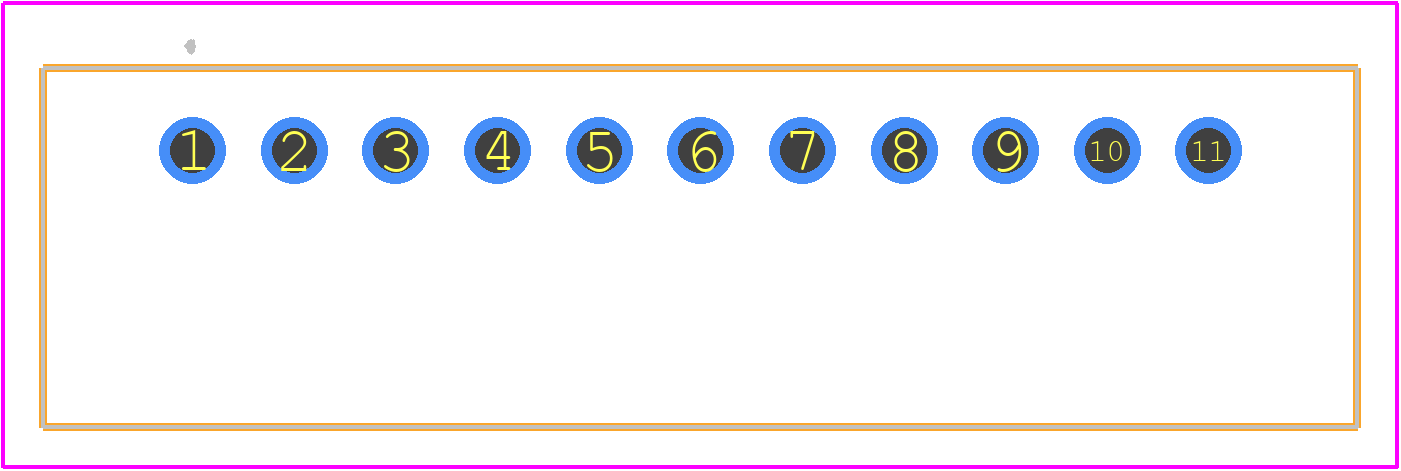

6-520314-1 - TE Connectivity PCB footprint - Other - Other - 6-520314-1-2
click to zoom
3D Models
6-520314-1 - TE Connectivity - 3D model - Other - 6-520314-1-2
click to zoom

6-520314-1 Details

  • Manufacturer Part Number:

    6-520314-1

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    7 Weeks, 6 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9.1

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    1400VAC V

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insertion Force-Max:

    LIF N

  • Insulation Resistance:

    5000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1A

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    1 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.1 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    11

  • UL Flammability Code:

    94V-0

6-520314-1 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals of the 6-520314-1 connector is 0.5-0.7 Nm (5-7 in-lbs).
  • The 6-520314-1 connector is designed for indoor use, but it can be used outdoors with proper sealing and protection. However, it's essential to ensure the connector is properly sealed and protected from environmental factors such as moisture, dust, and extreme temperatures.
  • The 6-520314-1 connector is designed to withstand moderate vibration, but it may not be suitable for high-vibration applications. For high-vibration applications, it's recommended to use connectors specifically designed for such environments, such as those with locking mechanisms or additional securing features.
  • The 6-520314-1 connector has an operating temperature range of -40°C to 105°C (-40°F to 221°F). However, it's essential to note that the temperature range may vary depending on the specific application and environmental conditions.
  • The 6-520314-1 connector is designed for manual assembly, but it can be adapted for automated assembly processes with proper tooling and equipment. It's recommended to consult with TE Connectivity or a qualified engineer to ensure compatibility and feasibility.
