6-966140-2 footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

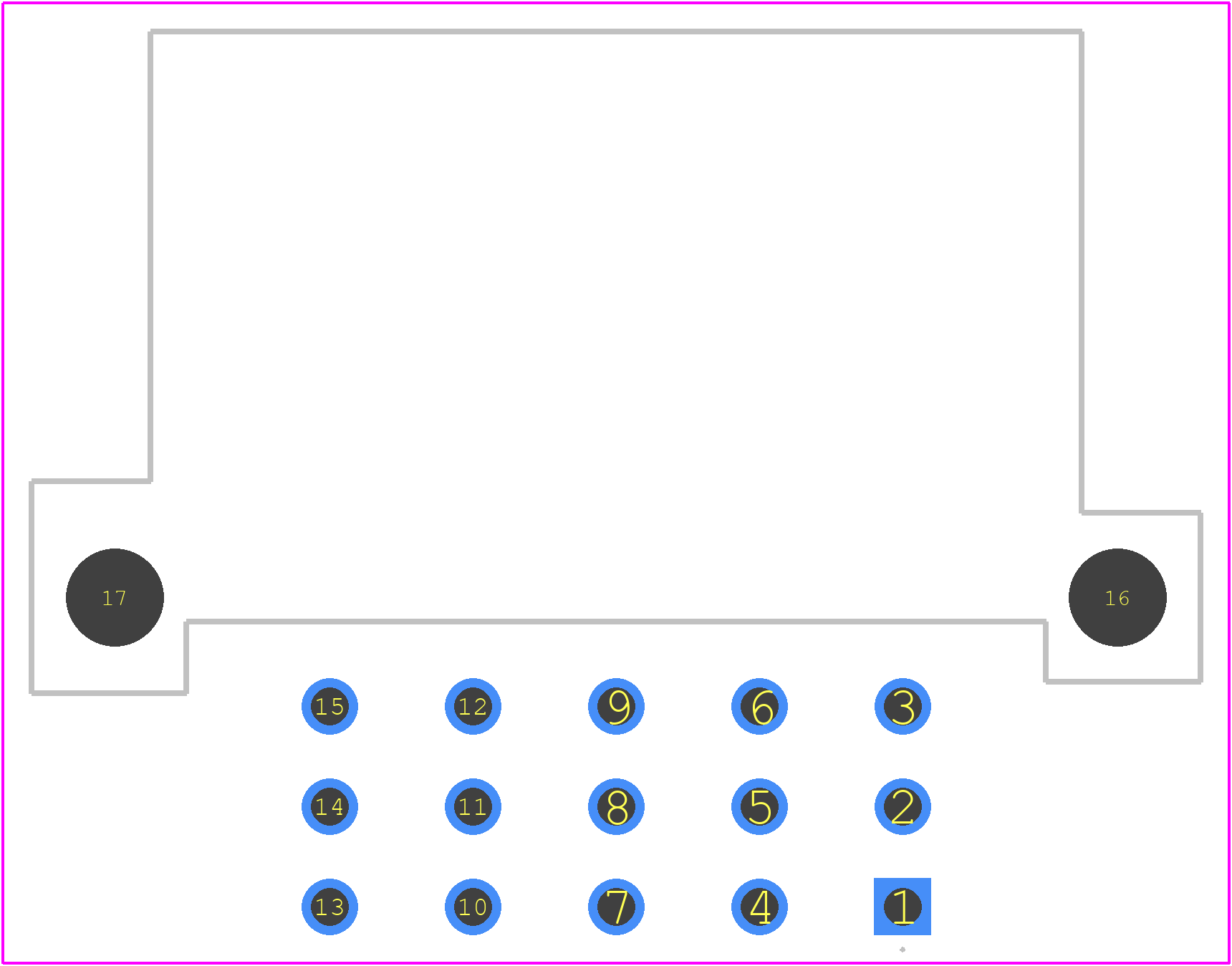

PCB Footprints

6-966140-2 - TE Connectivity PCB footprint - Other - Other - 6-966140-2-5

click to zoom

3D Models

6-966140-2 - TE Connectivity - 3D model - Other - 6-966140-2-5

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 6-966140-2
Part Number 6-966140-2
Manufacturer TE Connectivity
Pin Count 15
Part Category Connector
Package Category Other
Footprint Name Other - 6-966140-2-5
Released Date Jul 5, 2025
Last Modified Date Jul 5, 2025 7:37 AM UTC
Pinout / Pin List Click Here (Member Only)

6-966140-2 Details

Manufacturer Part Number:
6-966140-2
Brand Name:
AMP
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
16 Weeks, 4 Days
Manufacturer:
TE Connectivity
YTEOL:
7
Body Breadth:
1.012 inch
Body Length:
1.614 inch
Connector Type:
COMBINATION LINE CONNECTOR
Contact Finish Mating:
NOT APPLICABLE
Contact Gender:
MALE
Contact Material:
NOT APPLICABLE
DIN Conformance:
NO
EMI Shielded:
NO
Empty Shell:
YES
Filter Feature:
NO
IEC Conformance:
NO
MIL Conformance:
NO
Mains Connector Rating:
115/230VAC
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
PANEL
Number of Ports:
1
Number of Rows Loaded:
3
Operating Temperature-Max:
100 °C
Operating Temperature-Min:
-40 °C
Option:
GENERAL PURPOSE
Panel Mount:
NO
Rated Voltage:
24 V
Reference Standard:
UL
Terminal Pitch:
3.5 mm
Termination Type:
SOLDER
Total Number of Contacts:
15
UL Flammability Code:
94-HB

6-966140-2 Frequently Asked Questions (FAQs)

The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the terminals.
Yes, the 6-966140-2 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as transportation, industrial, and aerospace.
The 6-966140-2 connector has a IP67 rating, which means it is protected against dust and water ingress. However, it's essential to ensure proper sealing and protection of the connector and cable assembly to maintain its integrity in outdoor environments.
The 6-966140-2 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this range to maintain its performance and reliability.
Yes, the 6-966140-2 connector is designed to be compatible with other TE Connectivity products, such as cable assemblies and backshells. It's essential to ensure compatibility and proper mating to ensure reliable connections.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

6-966140-2 Overview

Use the download button to access the 6-966140-2 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 6-966, or try a keyword search, such as Combination Line Connectors
