6-966140-4 - TE Connectivity

Description: Body Features: Connector & Keying Code A | Primary Product Color Black | Configuration Features: PCB Mount Orientation Horizontal | Number of Positions 9 | Number of Rows 3 | Number of Signal Positions 9 | Contact Features: Mating Tab Thickness .8 MM | Contact Type Tab | Mating Tab Thickness .031 INCH | Contact Size 3mm | Contact Mating Area Plating Material Silver | Mating Tab Width .11 INCH | Mating Tab Width 2.8 MM | Dimensions: Connector Length 31 MM | Profile Height from PCB 26.2 MM | Profile Height fr

Download 6-966140-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
6-966140-4 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

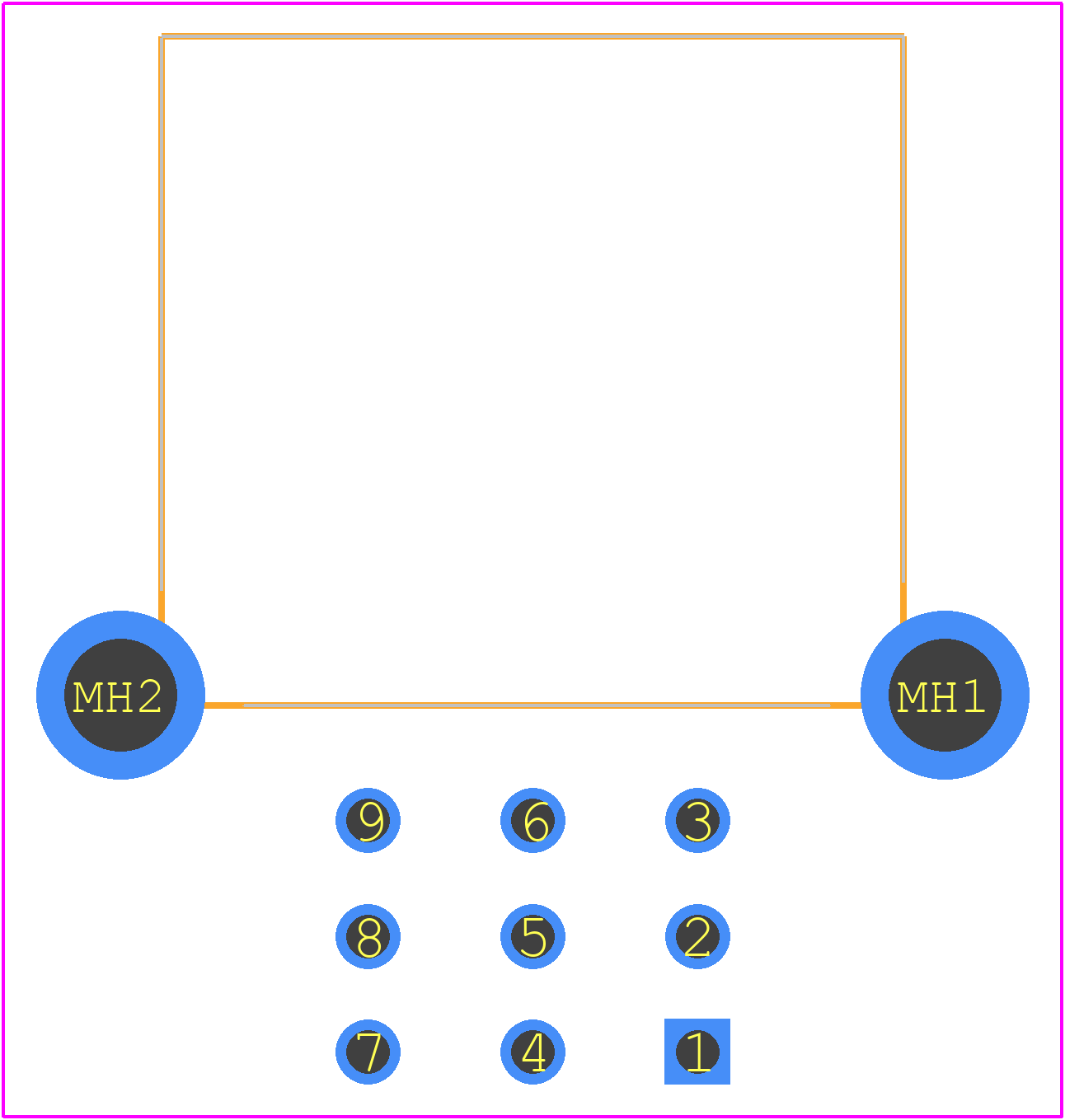

6-966140-4 - TE Connectivity PCB footprint - Other - Other - 6-966140-4-1
click to zoom
3D Models
6-966140-4 - TE Connectivity - 3D model - Other - 6-966140-4-1
click to zoom

6-966140-4 Details

  • Manufacturer Part Number:

    6-966140-4

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    14 Weeks, 4 Days

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    1.012 inch

  • Body Length:

    1.221 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    PANEL

  • Number of Ports:

    1

  • Number of Rows Loaded:

    3

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Voltage:

    24 V

  • Reference Standard:

    UL

  • Terminal Pitch:

    3.5 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    9

  • UL Flammability Code:

    94-HB

6-966140-4 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this range to ensure reliable connections and prevent damage to the connector.
  • Yes, the 6-966140-4 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 6-966140-4 connector has a rating of IP67, which means it provides protection against dust and water immersion up to 1 meter for 30 minutes. However, it's essential to ensure proper sealing and protection of the connector and its mating components to maintain its environmental rating.
  • The 6-966140-4 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • While the datasheet recommends using AWG 20-24 wire sizes, it's possible to use other wire sizes with the 6-966140-4 connector. However, it's essential to ensure that the wire size is compatible with the connector's terminal design and that the wire is properly seated and secured to prevent damage or disconnection.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

6-966140-4 Overview

Use the download button to access the 6-966140-4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 6-966, or try a keyword search, such as Combination Line Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
