Wurth Elektronik provides a recommended PCB layout and land pattern in their application notes and layout recommendations, which can be found on their website or through their customer support. It's essential to follow these guidelines to ensure proper assembly and performance of the component.
Wurth Elektronik recommends following standard SMD assembly and rework procedures, including using a soldering iron with a temperature of 260°C (max) and a soldering time of 3 seconds (max). Additionally, using a hot air soldering station with a temperature of 220°C (max) and an air flow of 1 liter/minute (max) is also acceptable. It's essential to avoid overheating, excessive mechanical stress, and exposure to moisture.
The 61001611921 has an MSL rating of 3, which means it can be exposed to a maximum of 168 hours at 30°C and 60% relative humidity before soldering. It's essential to follow proper storage and handling procedures to prevent moisture absorption and ensure reliable assembly.
Wurth Elektronik recommends consulting their application notes and technical support for specific guidance on using the 61001611921 in high-vibration or high-shock applications. In general, the component is designed for standard PCB assembly and may not be suitable for extreme environmental conditions without additional testing and validation.
Wurth Elektronik provides reliability data and expected lifespan information in their datasheet and application notes. The 61001611921 is designed to meet industry standards for reliability and lifespan, but actual performance may vary depending on the specific application, operating conditions, and assembly quality.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
61001611921 Overview

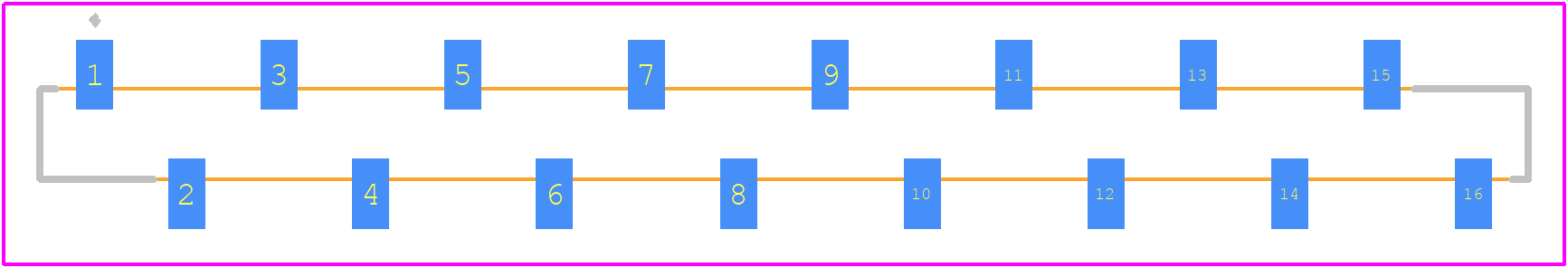

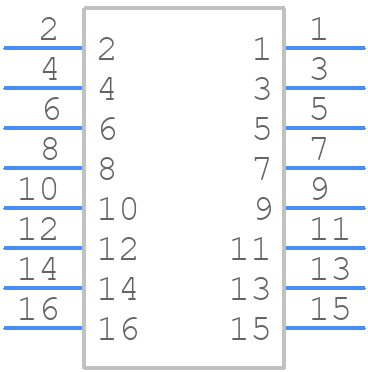

Use the download button to access the 61001611921 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 61001,
or try a keyword search, such as Headers and Edge Type Connectors
