61002621821 - Würth Elektronik

Description: WR-PHD 2.54 mm Dual SMT Socket Header 26 pins, dual row, straight, gold plating

Download 61002621821 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

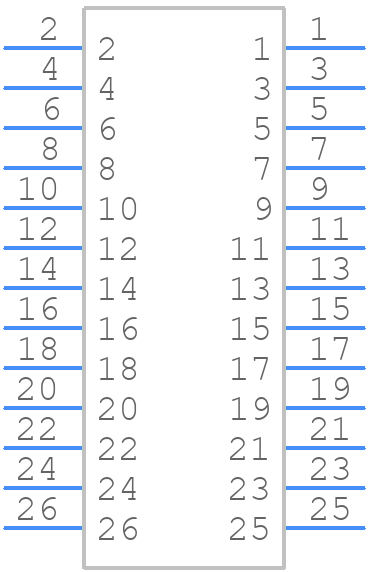

Symbol
61002621821 - Würth Elektronik - PCB symbol
click to zoom

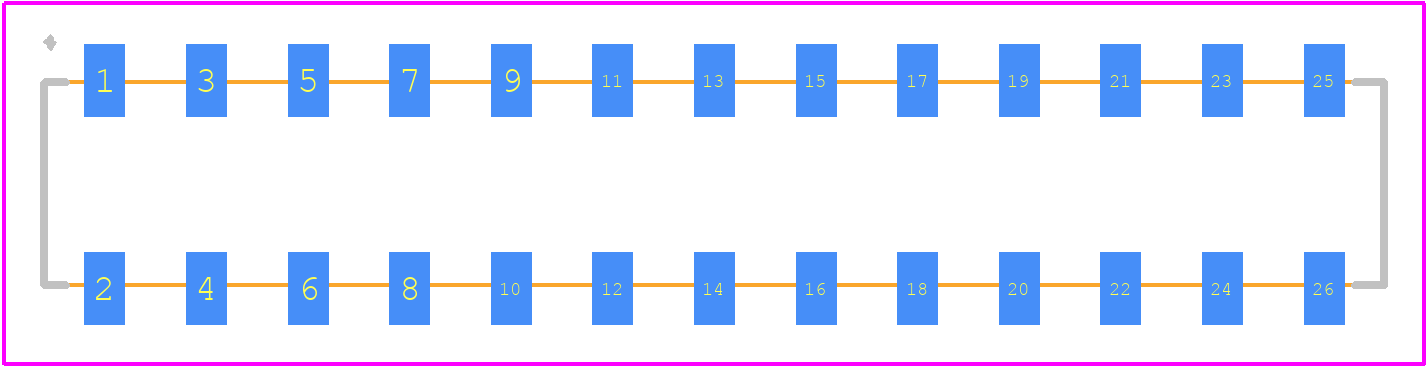

PCB Footprints
61002621821 - Würth Elektronik PCB footprint - Other - Other - 61002621821-1
click to zoom
3D Models
61002621821 - Würth Elektronik - 3D model - Other - 61002621821-1
click to zoom

61002621821 Details

  • Manufacturer Part Number:

    61002621821

  • Brand Name:

    Wurth Electronik

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Wurth Elektronik

  • YTEOL:

    15

  • Body Breadth:

    0.2 inch

  • Body Depth:

    0.293 inch

  • Body Length:

    1.3 inch

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    500VAC V

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    5.207 mm

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    26

  • UL Flammability Code:

    94V-0

61002621821 Frequently Asked Questions (FAQs)

  • Wurth Elektronik provides a recommended PCB layout and land pattern in their application notes and layout recommendations documents, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize signal integrity issues.
  • The 61002621821 component has a maximum operating temperature of 125°C. To ensure proper thermal management, it's recommended to provide a sufficient heat sink or thermal pad on the PCB, and to follow Wurth Elektronik's guidelines for thermal design and layout.
  • Wurth Elektronik provides recommended soldering and rework conditions in their datasheet and application notes. It's essential to follow these guidelines to avoid damaging the component during the assembly process.
  • Wurth Elektronik provides guidance on EMC and EMI compliance in their application notes and datasheet. It's recommended to follow their guidelines for component placement, PCB layout, and shielding to ensure compliance with relevant EMC and EMI standards.
  • The 61002621821 component has a moisture sensitivity level (MSL) of 3, according to the JEDEC standard. It's recommended to follow Wurth Elektronik's guidelines for handling and storage to prevent moisture-related damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

61002621821 Overview

Use the download button to access the 61002621821 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 61002, or try a keyword search, such as Headers and Edge Type Connectors
