Wurth Elektronik provides a recommended PCB layout in their application notes and design guides, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance, especially for high-frequency applications.
The 61031621821 component has a maximum operating temperature of 125°C. To ensure reliable operation, it's crucial to implement proper thermal management, such as using thermal vias, heat sinks, or thermal pads, depending on the specific application and environmental conditions.
Wurth Elektronik recommends following the JEDEC J-STD-020 standard for soldering. It's essential to use a soldering profile that ensures a reliable connection while avoiding damage to the component. The recommended soldering temperature is between 220°C to 240°C.
To ensure EMC, it's essential to follow proper PCB design and layout guidelines, such as using shielding, grounding, and decoupling techniques. Additionally, the component should be placed in a way that minimizes electromagnetic interference (EMI) and radiation.
The 61031621821 component has an MSL rating of 3, which means it can withstand exposure to moisture for up to 168 hours. However, it's still essential to follow proper handling and storage procedures to prevent moisture damage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
61031621821 Overview

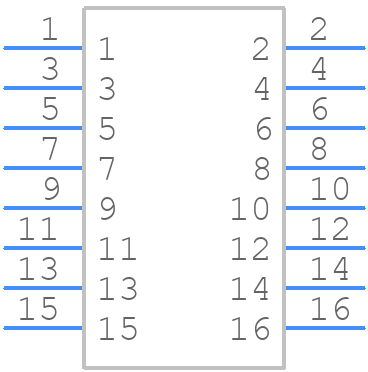

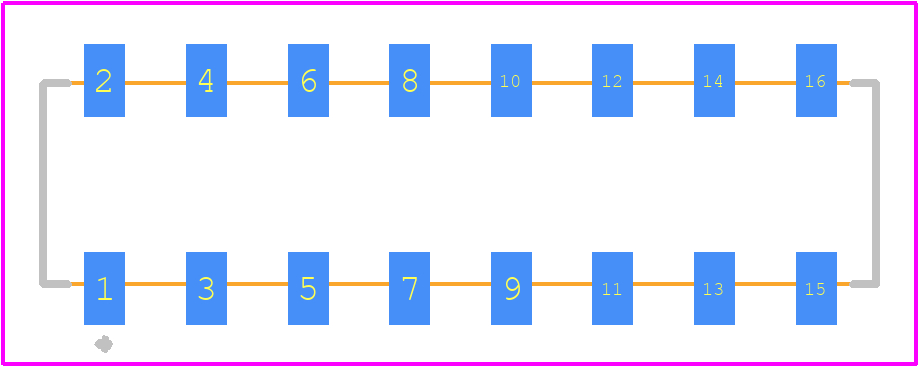

Use the download button to access the 61031621821 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 61031,
or try a keyword search, such as Headers and Edge Type Connectors
