6116173-1 - TE Connectivity

Description: Body Features: Insulator Material Polyester | Shield Material Copper Alloy | LED Color (Bottom Right) Yellow | Shield Plating Material Tin | LED Color (Bottom Left) Green | Modular Jack Latch Orientation Inverted - Latch Up | PCB Ground Tab Location -3.43 MM | PCB Ground Tab Location -.135 INCH | Connector Profile Standard | Configuration Features: Number of Loaded Positions 8 | Number of Positions 8 | PCB Mount Orientation Right Angle | Panel Ground Location Top | Port Configuration Single Port | Connector

Download 6116173-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

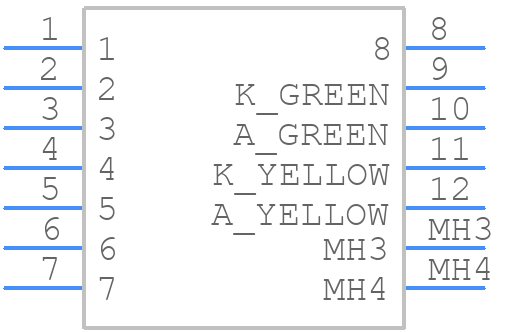

6116173-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

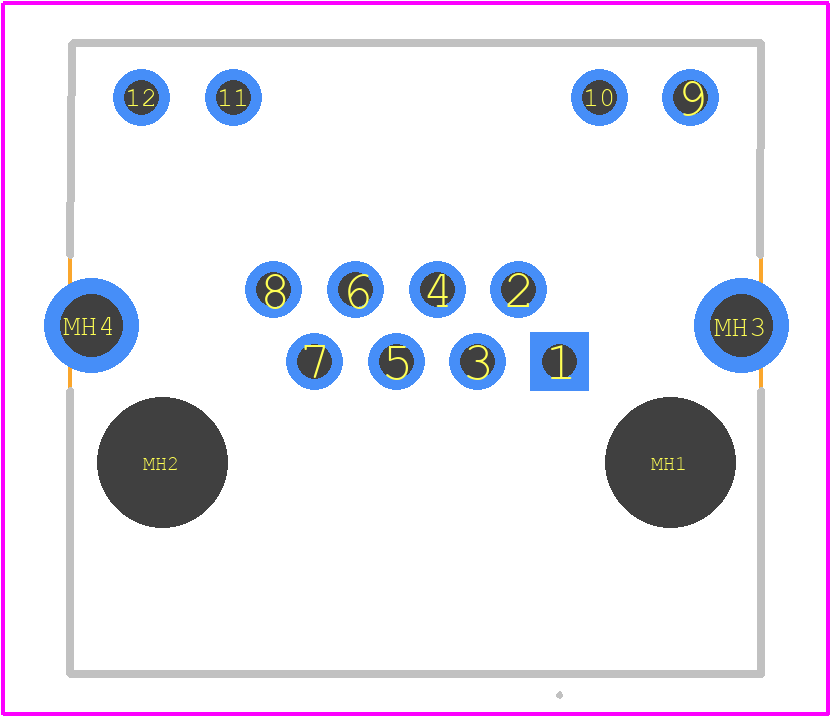

6116173-1 - TE Connectivity PCB footprint - Other - Other - 6116173-1-2
click to zoom
3D Models
6116173-1 - TE Connectivity - 3D model - Other - 6116173-1-2
click to zoom

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

6116173-1 Overview

Use the download button to access the 6116173-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 61161, or try a keyword search, such as Telecom and Datacom Connectors
