6116353-4 - TE Connectivity

Description: Body Features: LED Color (Top Left) Green | PCB Ground Tab Location -.135 INCH | PCB Ground Tab Location -3.43 MM | Connector Profile Standard | Modular Jack Latch Orientation Inverted - Latch Up | Shield Plating Material Nickel over Copper | LED Color (Top Right) Yellow | Shield Material Copper Zinc Alloy | Configuration Features: Number of PCB Ground Tabs 4 | Port Configuration Multiple Ports | Number of Positions 8 | Multiple Port Configuration Ganged | Number of Loaded Positions 8 | PCB Mount Orientatio

Download 6116353-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

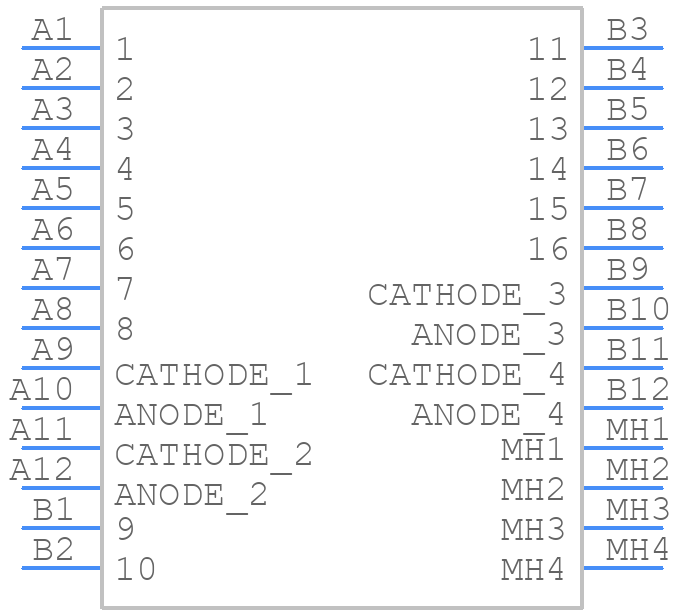

6116353-4 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

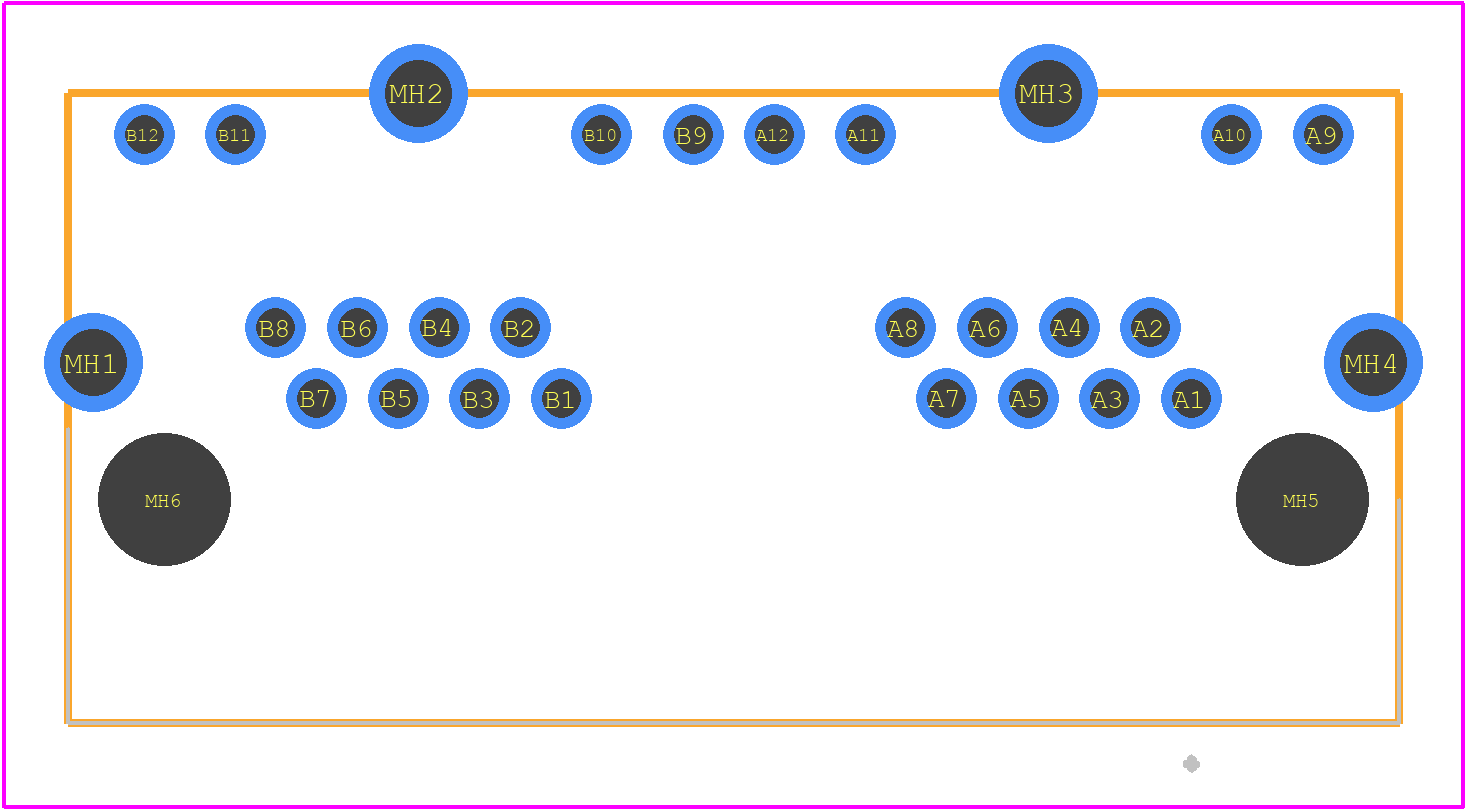

6116353-4 - TE Connectivity PCB footprint - Other - Other - 6116353-4-4
click to zoom
3D Models
6116353-4 - TE Connectivity - 3D model - Other - 6116353-4-4
click to zoom

6116353-4 Details

  • Manufacturer Part Number:

    6116353-4

  • Brand Name:

    AMP

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    8 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • Additional Feature:

    2 PORTS 8 POSITION EACH

  • Body/Shell Style:

    JACK

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    TIN OVER NICKEL

  • Contact Gender:

    FEMALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYETHYLENE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    2

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    NICKEL

  • Shell Material:

    COPPER-ZINC ALLOY

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    16

  • UL Flammability Code:

    94V-0
