6116LA120TDB - Renesas Electronics

Description: The 6116 5V CMOS SRAM is organized as 2K x 8. The 6116 offers a reduced power standby mode.The low-power (LA) version also offers a battery backup data retention capability where the circuit typically consumes only 1μW to 4μW operating off a 2V battery. All inputs and outputs are TTL-compatible. Fully static asynchronous circuitry is used, requiring no clocks or refreshing for operation. Military grade product is available.

Download 6116LA120TDB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

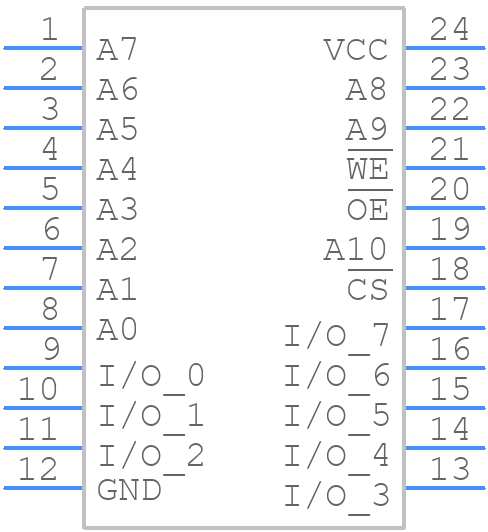

6116LA120TDB - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

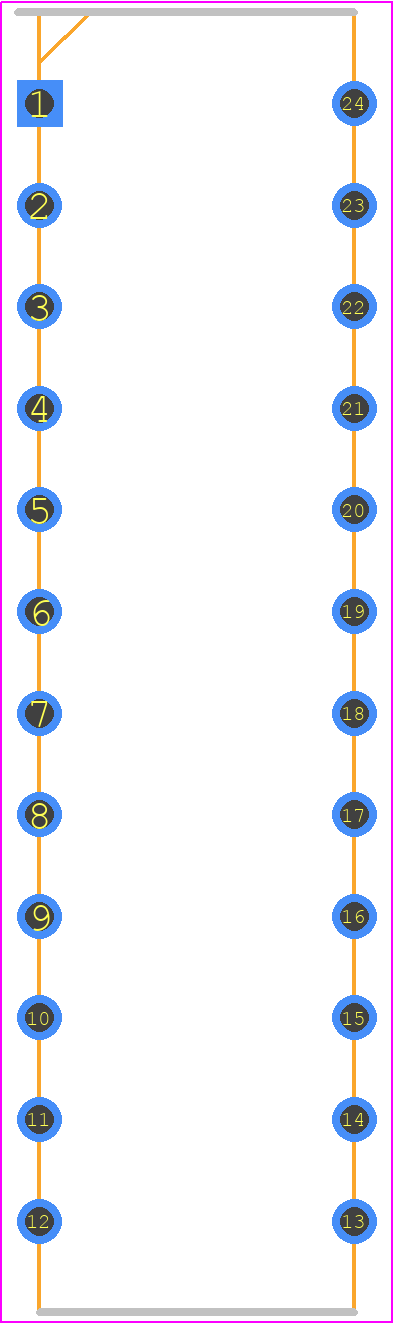

6116LA120TDB - Renesas Electronics PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - SD24
click to zoom

6116LA120TDB Details

  • Manufacturer Part Number:

    6116LA120TDB

  • Brand Name:

    Renesas

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    CDIP

  • Package Description:

    DIP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    SD24

  • ECCN Code:

    3A001.A.2.C

  • HTS Code:

    8542.32.00.41

  • Date Of Intro:

    2020-07-21

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Access Time-Max:

    120 ns

  • I/O Type:

    COMMON

  • JESD-30 Code:

    R-CDIP-T24

  • JESD-609 Code:

    e0

  • Length:

    32.51 mm

  • Memory Density:

    16384 bit

  • Memory IC Type:

    STANDARD SRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of Words:

    2048 words

  • Number of Words Code:

    2000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Organization:

    2KX8

  • Output Characteristics:

    3-STATE

  • Output Enable:

    YES

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    240

  • Screening Level:

    MIL-STD-883 Class B

  • Seated Height-Max:

    3.56 mm

  • Standby Current-Max:

    0.015 A

  • Standby Voltage-Min:

    2 V

  • Supply Current-Max:

    0.085 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

6116LA120TDB Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable heat sink, and implement thermal management techniques such as thermal throttling or shutdown.
  • The input capacitor should be a low-ESR, high-frequency capacitor with a minimum capacitance of 10uF and a voltage rating of at least 25V. The capacitor should be placed as close as possible to the VIN pin to minimize noise and ensure stable operation.
  • To troubleshoot POR issues, check the power supply voltage, ensure the POR pin is properly connected, and verify that the reset signal is properly generated. Also, review the POR timing and voltage threshold settings to ensure they meet the device's requirements.
  • Operating the device outside of its recommended operating conditions can lead to reduced performance, increased power consumption, and potentially even device failure. It's essential to ensure the device operates within its specified voltage, temperature, and frequency ranges.
