6116LA25SOG8 - Renesas Electronics

Description: The 6116 5V CMOS SRAM is organized as 2K x 8. The 6116 offers a reduced power standby mode.The low-power (LA) version also offers a battery backup data retention capability where the circuit typically consumes only 1μW to 4μW operating off a 2V battery. All inputs and outputs are TTL-compatible. Fully static asynchronous circuitry is used, requiring no clocks or refreshing for operation. Military grade product is available.

Download 6116LA25SOG8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

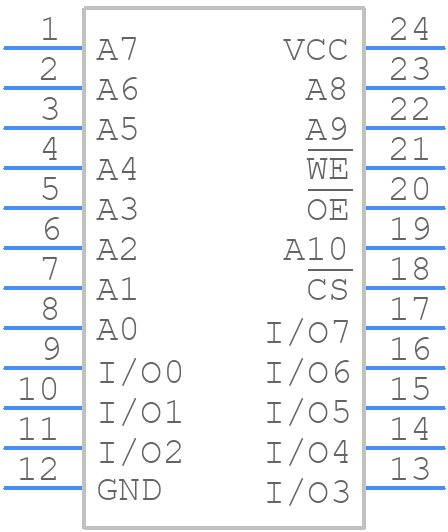

6116LA25SOG8 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
6116LA25SOG8 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PSG24
click to zoom

6116LA25SOG8 Details

  • Manufacturer Part Number:

    6116LA25SOG8

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    PSG24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.41

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2020-07-21

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    4

  • Access Time-Max:

    25 ns

  • I/O Type:

    COMMON

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.4 mm

  • Memory Density:

    16384 bit

  • Memory IC Type:

    STANDARD SRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Ports:

    1

  • Number of Terminals:

    24

  • Number of Words:

    2048 words

  • Number of Words Code:

    2000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    70 °C

  • Organization:

    2KX8

  • Output Characteristics:

    3-STATE

  • Output Enable:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.34 mm

  • Standby Current-Max:

    0.035 A

  • Standby Voltage-Min:

    2 V

  • Supply Current-Max:

    0.11 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7.6 mm

6116LA25SOG8 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 6116LA25SOG8 is -40°C to +85°C, as specified in the datasheet. However, it's essential to note that the device can operate at a wider temperature range, but with reduced performance and reliability.
  • To ensure reliable data retention in the 6116LA25SOG8, it's crucial to follow the recommended storage conditions, such as storing the device in a cool, dry place, away from direct sunlight and radiation. Additionally, the device should be powered down before storage, and the VCC pin should be at a voltage level below 0.5V.
  • The maximum clock frequency supported by the 6116LA25SOG8 is 25 MHz, as specified in the datasheet. However, it's essential to note that the device can operate at higher clock frequencies, but with reduced performance and increased power consumption.
  • The 6116LA25SOG8 has an internal power-on reset (POR) circuit that ensures the device resets correctly during power-up. To handle POR, it's recommended to connect a capacitor between the VCC pin and the GND pin, with a value of at least 10 nF, to filter out any noise and ensure a clean power-up sequence.
  • The recommended layout and routing for the 6116LA25SOG8 involve keeping the signal traces short and direct, avoiding vias and layer changes, and using a solid ground plane to reduce noise and electromagnetic interference (EMI). It's also essential to follow the recommended pinout and package guidelines to ensure optimal performance and reliability.
