6116LA45TDB - Renesas Electronics

Description: The 6116 5V CMOS SRAM is organized as 2K x 8. The 6116 offers a reduced power standby mode.The low-power (LA) version also offers a battery backup data retention capability where the circuit typically consumes only 1μW to 4μW operating off a 2V battery. All inputs and outputs are TTL-compatible. Fully static asynchronous circuitry is used, requiring no clocks or refreshing for operation. Military grade product is available.

Download 6116LA45TDB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

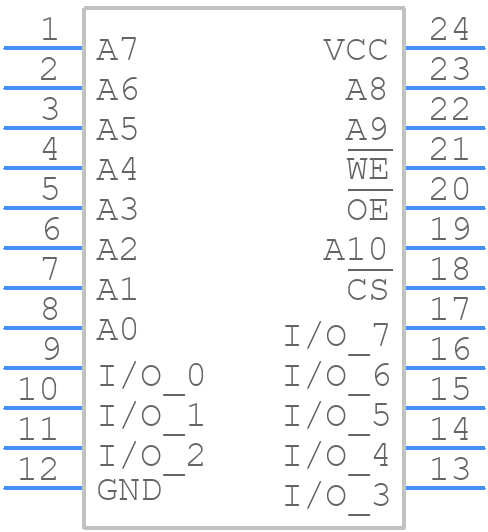

6116LA45TDB - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

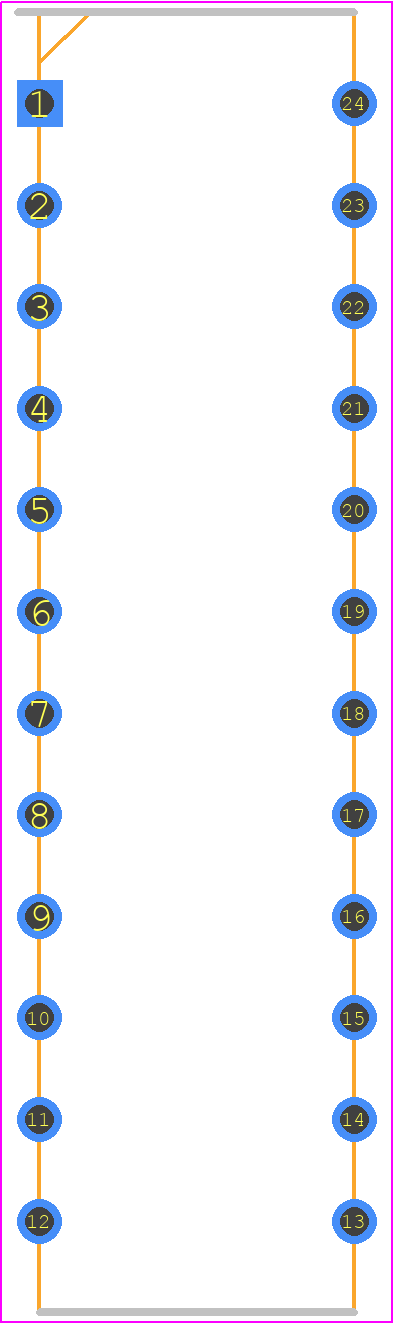

6116LA45TDB - Renesas Electronics PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - SD24
click to zoom

6116LA45TDB Details

  • Manufacturer Part Number:

    6116LA45TDB

  • Brand Name:

    Renesas

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    CDIP

  • Package Description:

    DIP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    SD24

  • ECCN Code:

    3A001.A.2.C

  • HTS Code:

    8542.32.00.41

  • Date Of Intro:

    2020-07-21

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Access Time-Max:

    45 ns

  • I/O Type:

    COMMON

  • JESD-30 Code:

    R-CDIP-T24

  • JESD-609 Code:

    e0

  • Length:

    32.51 mm

  • Memory Density:

    16384 bit

  • Memory IC Type:

    STANDARD SRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Ports:

    1

  • Number of Terminals:

    24

  • Number of Words:

    2048 words

  • Number of Words Code:

    2000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Organization:

    2KX8

  • Output Characteristics:

    3-STATE

  • Output Enable:

    YES

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    240

  • Screening Level:

    MIL-STD-883 Class B

  • Seated Height-Max:

    3.54 mm

  • Standby Current-Max:

    0.02 A

  • Standby Voltage-Min:

    2 V

  • Supply Current-Max:

    0.095 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

6116LA45TDB Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 6116LA45TDB is -40°C to 125°C, but it can tolerate storage temperatures from -55°C to 150°C.
  • The 6116LA45TDB has an internal POR and BOR circuitry. To handle these, ensure a stable power supply, use a capacitor on the VCC pin, and consider adding an external reset circuit if necessary.
  • The 6116LA45TDB can operate at a maximum clock frequency of 45 MHz, but it's recommended to check the specific clock frequency requirements for your application.
  • The 6116LA45TDB's flash memory can be configured using the Renesas Flash Development Toolkit or other third-party tools. Consult the datasheet and application notes for specific configuration details.
  • The 6116LA45TDB has a typical active current consumption of 10 mA at 45 MHz, and a standby current consumption of 10 μA. However, actual power consumption may vary depending on the application and operating conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

6116LA45TDB Overview

Use the download button to access the 6116LA45TDB schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 6116L, or try a keyword search, such as SRAMs
